LB9 User’s Guide 1380/1523

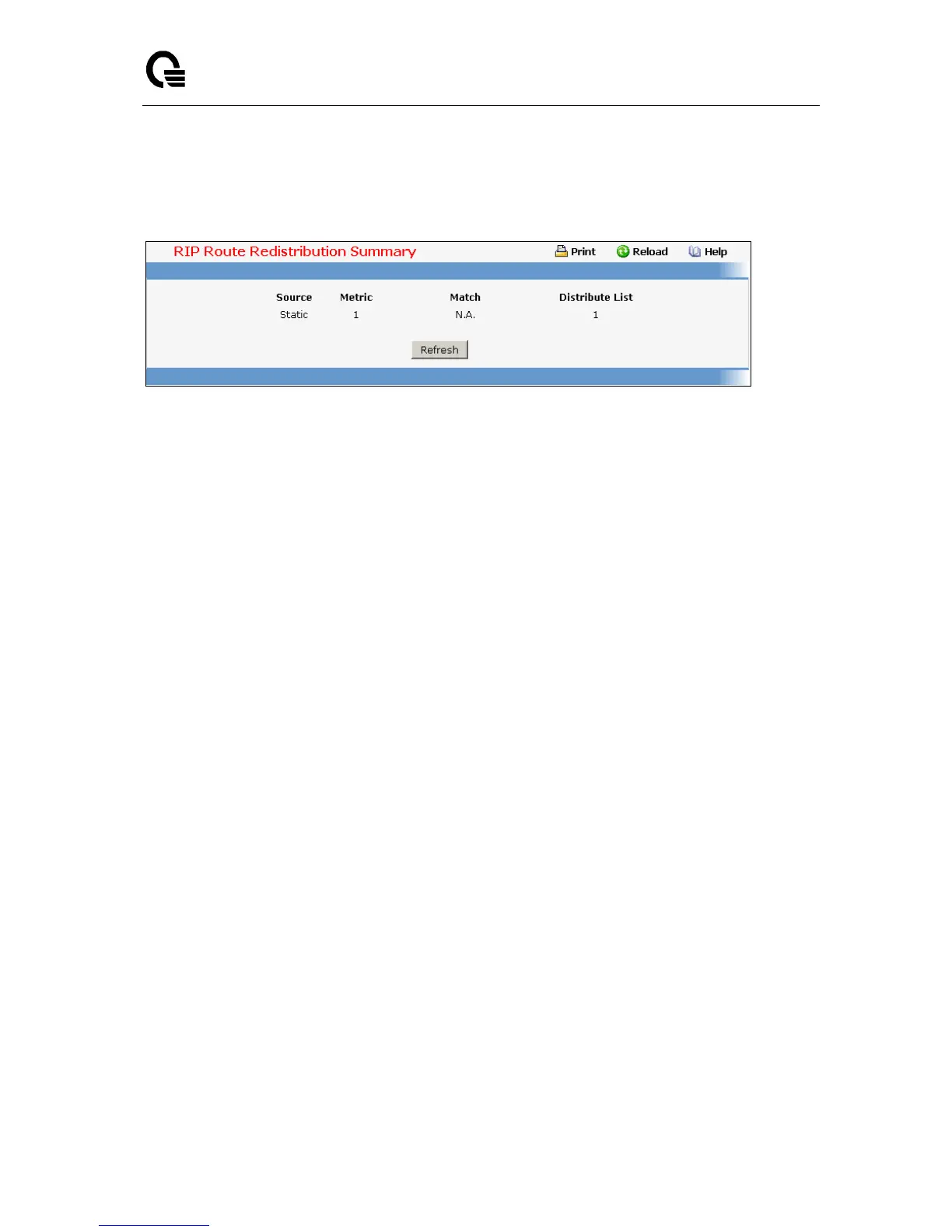

11.6.6.5 Viewing Route Redistribution Configuration
This screen displays the RIP Route Redistribution Configurations.
Non-Configurable Data
Source - The Source Route to be Redistributed by RIP.
Metric- The Metric of redistributed routes for the given Source Route. Displays "Unconfigured" when
not configured.
Match - List of Routes redistributed when "OSPF" is selected as Source. The list may include one or
more of:
Internal
External 1
External 2
NSSA-External 1
NSSA-External 2
Distribute List - The Access List that filters the routes to be redistributed by the Destination
Protocol. Displays 0 when not configured.
Command Buttons
Refresh - Displays the latest RIP Route Redistribution Configuration data.
