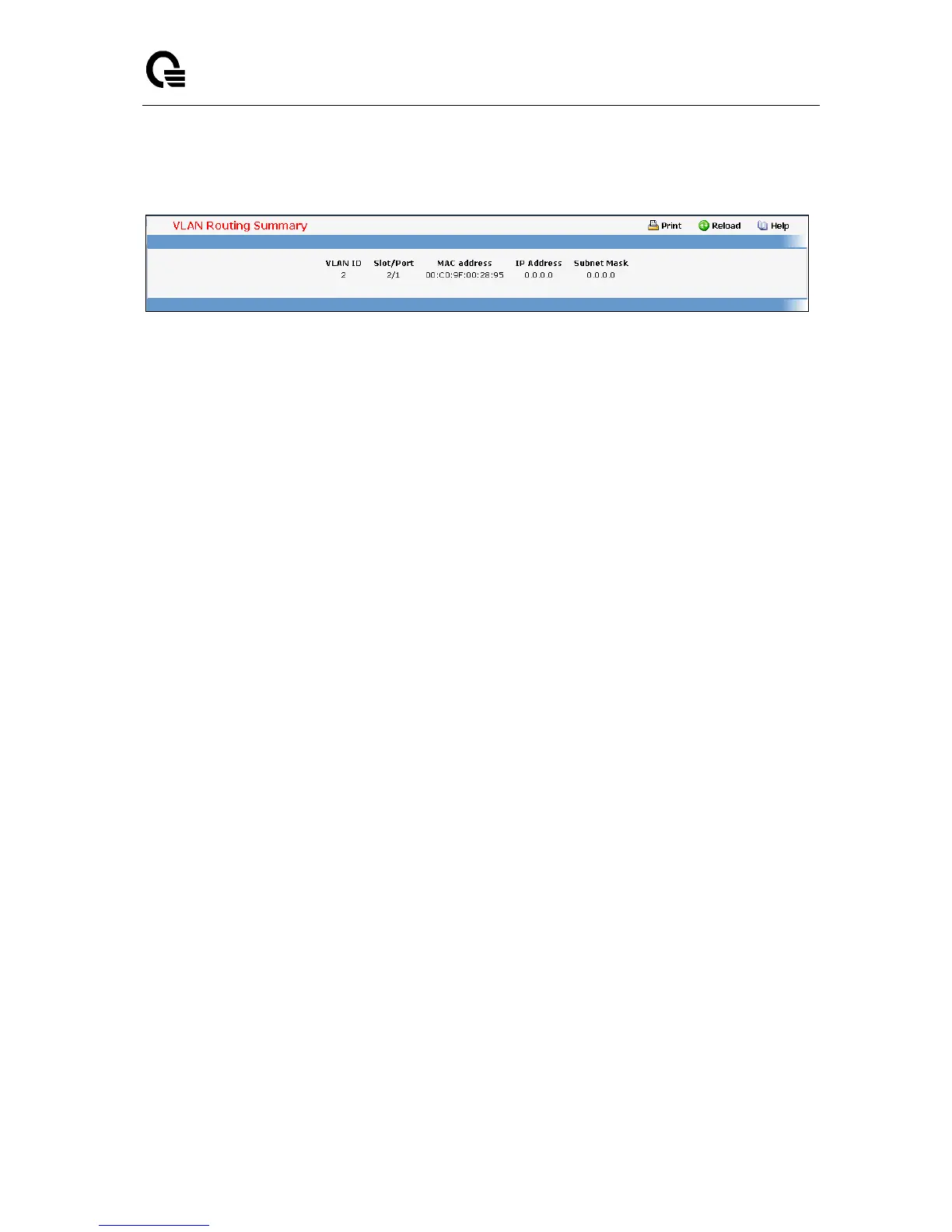

11.6.9.2 Viewing VLAN Routing Summary Information
Non-Configurable Data
VLAN ID - The ID of the VLAN whose data is displayed in the current table row
Slot/Port - The Slot/Port assigned to the VLAN Routing Interface
MAC Address - The MAC Address assigned to the VLAN Routing Interface
IP Address - The configured IP Address of the VLAN Routing Interface. This will be 0.0.0.0 when
the VLAN Routing Interface is first configured and must be entered on the IP Interface Configuration
page.
Subnet Mask - The configured Subnet Mask of the VLAN Routing Interface. This will be 0.0.0.0
when the VLAN Routing Interface is first configured and must be entered on the IP Interface
Configuration page.
