LB9 User’s Guide 1396/1523

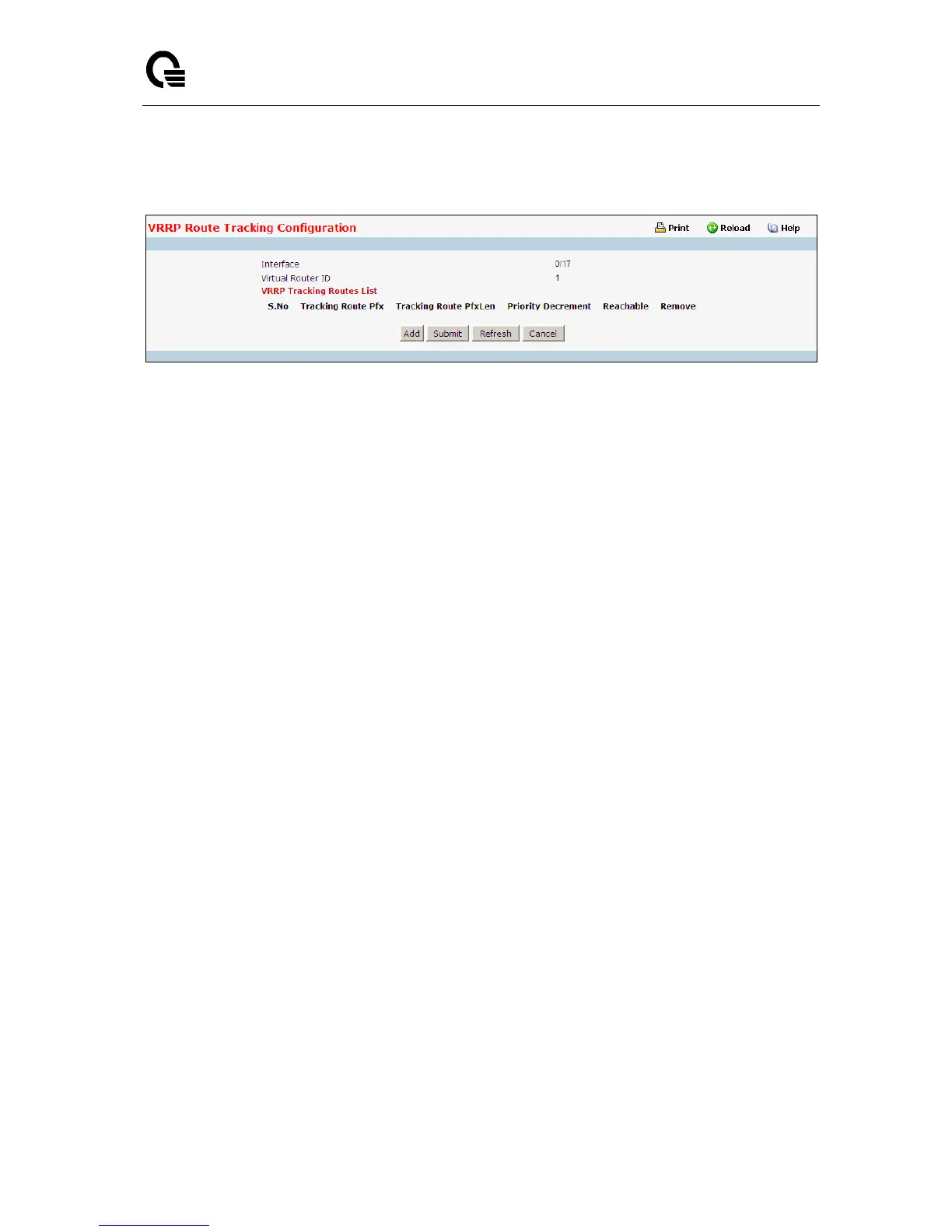

11.6.10.6 Configuring VRRP Route Tracking
Configurable Data
Priority Decrement - Enter the priority decrement for the tracked Route. The valid range is 1 -254.
default value is 10.
Remove - Removes the selected Tracking Routes from the VRRP tracked list.
Non-Configurable Data
Interface - The VRRP interface for which Tracking data is to be displayed.
Virtual Router ID - he Virtual Router ID for which Tracking data is to be displayed.
S.No - The serial number for this row.
Tracking Route Pfx - The Prefix of the tracked route.
Tracking Route PfxLen - The prefix length of the tracked route.
Reachable - The reachability of the tracked Route.
Command Buttons
Add - Proceed to the VRRP Track Route screen.
Submit - Send the updated configuration to the router. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
Cancel - Return to the Virtual Router Configuration screen.
