LB9 User’s Guide 1400/1523

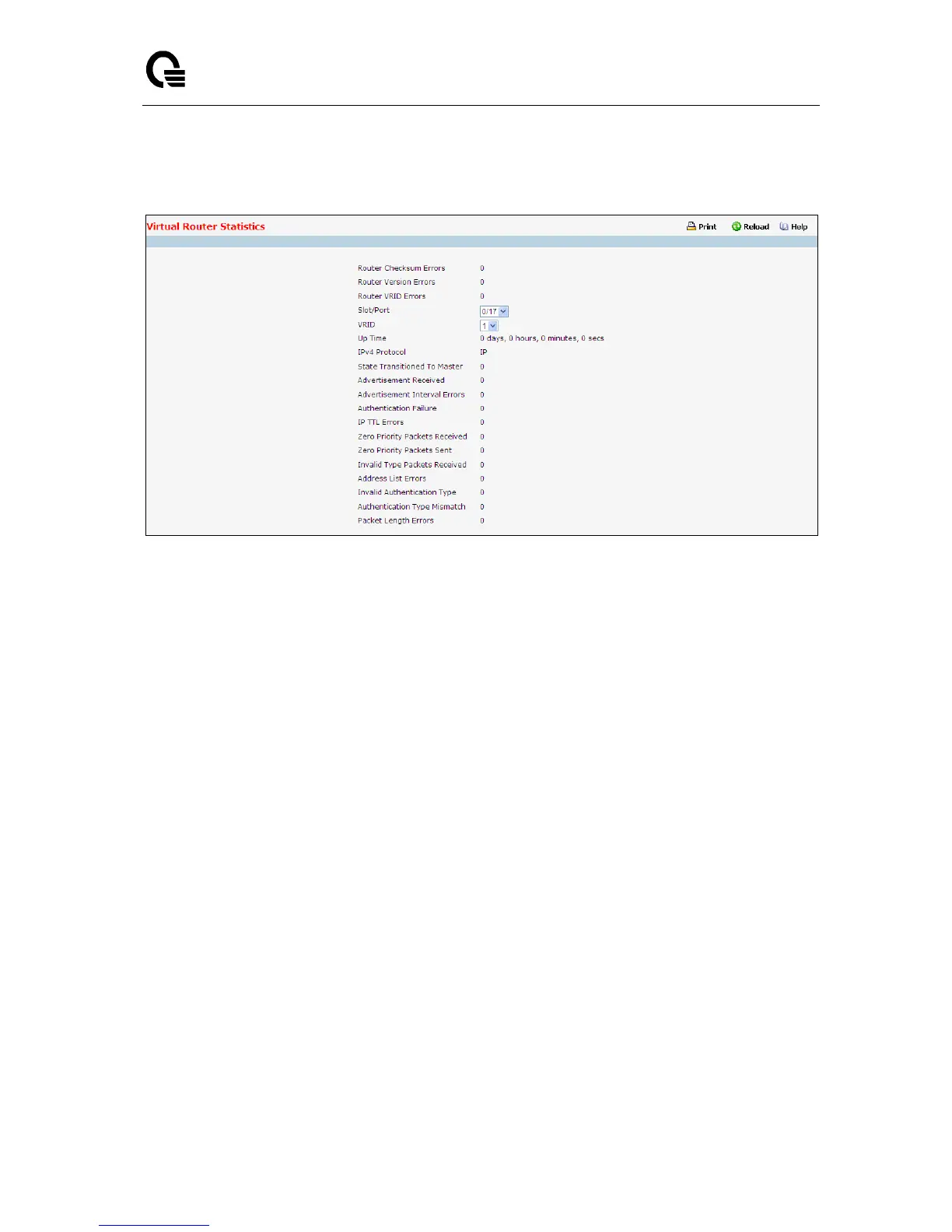

11.6.10.9 Viewing Virtual Router Statistics
Selection Criteria
VRID and Slot/Port - Select the existing Virtual Router, listed by interface number and VRID, for
which you want to display statistical information.
Non-Configurable Data
Router Checksum Errors - The total number of VRRP packets received with an invalid VRRP
checksum value.
Router Version Errors - The total number of VRRP packets received with an unknown or
unsupported version number.
Router VRID Errors - The total number of VRRP packets received with an invalid VRID for this
virtual router.
VRID - the VRID for the selected Virtual Router.
Slot/Port - The Slot/Port for the selected Virtual Router.
Up Time - The time, in days, hours, minutes and seconds, that has elapsed since the virtual router
transitioned to the initialized state.
State Transitioned to Master - The total number of times that this virtual router's state has
transitioned to Master.
Advertisement Received - The total number of VRRP advertisements received by this virtual
router.
Advertisement Interval Errors - The total number of VRRP advertisement packets received for
which the advertisement interval was different than the one configured for the local virtual router .
Authentication Failure - The total number of VRRP packets received that did not pass the
authentication check.
IP TTL Errors - The total number of VRRP packets received by the virtual router with IP TTL
(Time-To-Live) not equal to 255.
