LB9 User’s Guide 1403/1523
Command Buttons
Submit - Update the system with the values on this screen.
Delete Tunnel - Remove the selected interface.

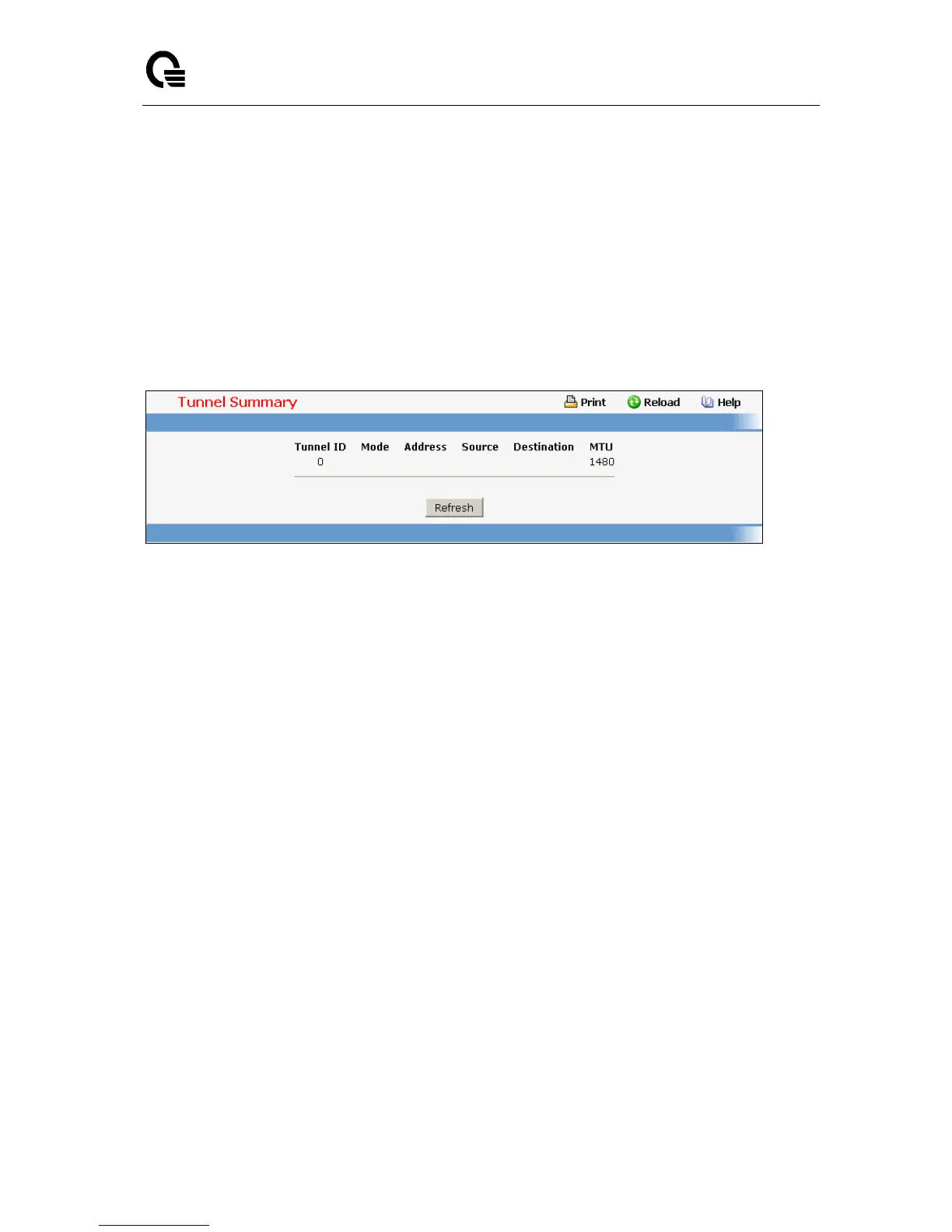

11.6.11.2 Viewing Tunnels Summary Page
This page displays a summary of the configured tunnels.
Non-Configurable Data
Tunnel ID - The Tunnel ID.
Mode - The corresponding mode of the Tunnel.
Address - The IPv6 Address(es) of the Tunnel.
Source - The corresponding Tunnel Source Address. In the case where an interface has been
configured both the interface and the address are displayed. If the source interface has no address
configured the text 'unconfigured' is displayed in place of the address.
Destination - The corresponding Tunnel Destination Address.
Command Buttons
Refresh - Refresh the page with the latest Tunnel entries.
