UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1432/1523

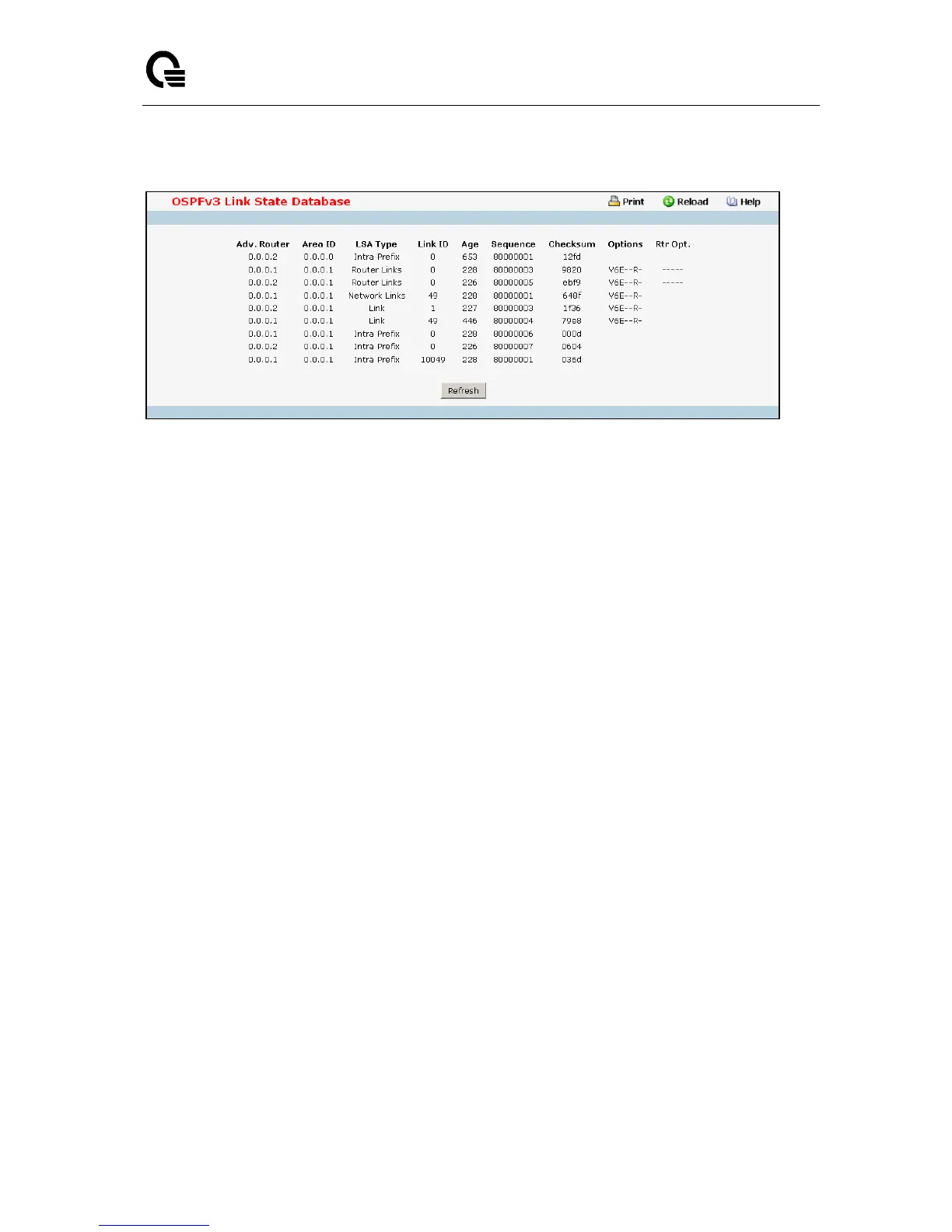

11.7.7.9 Viewing OSPFv3 Link State Database Information Page
Non-Configurable Data
Adv.Router- The Router ID value of the advertising router for this LSA.
Area ID- The Area to which this LSA belongs to.
LSA Type - The format and function of the link state advertisement. One of the following:
 Router Links
 Network Links
 Network Summary
 ASBR Summary
 AS-external
Link ID - The Link State ID identifies the piece of the routing domain that is being described by the
advertisement. The value of the LS ID depends on the advertisement's LS type.
Age - The time since the link state advertisement was first originated, in seconds.
Sequence - The sequence number field is a signed 32-bit integer. It is used to detect old and
duplicate link state advertisements. The larger the sequence number, the more recent the
advertisement.
Checksum - The checksum is used to detect data corruption of an advertisement. This corruption
can occur while an advertisement is being flooded, or while it is being held in a router's memory. This
field is the checksum of the complete contents of the advertisement, except the LS age field.
Options - The Options field in the link state advertisement header indicates which optional
capabilities are associated with the advertisement.
Rtr Options - The router specific options.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
