LB9 User’s Guide 1436/1523

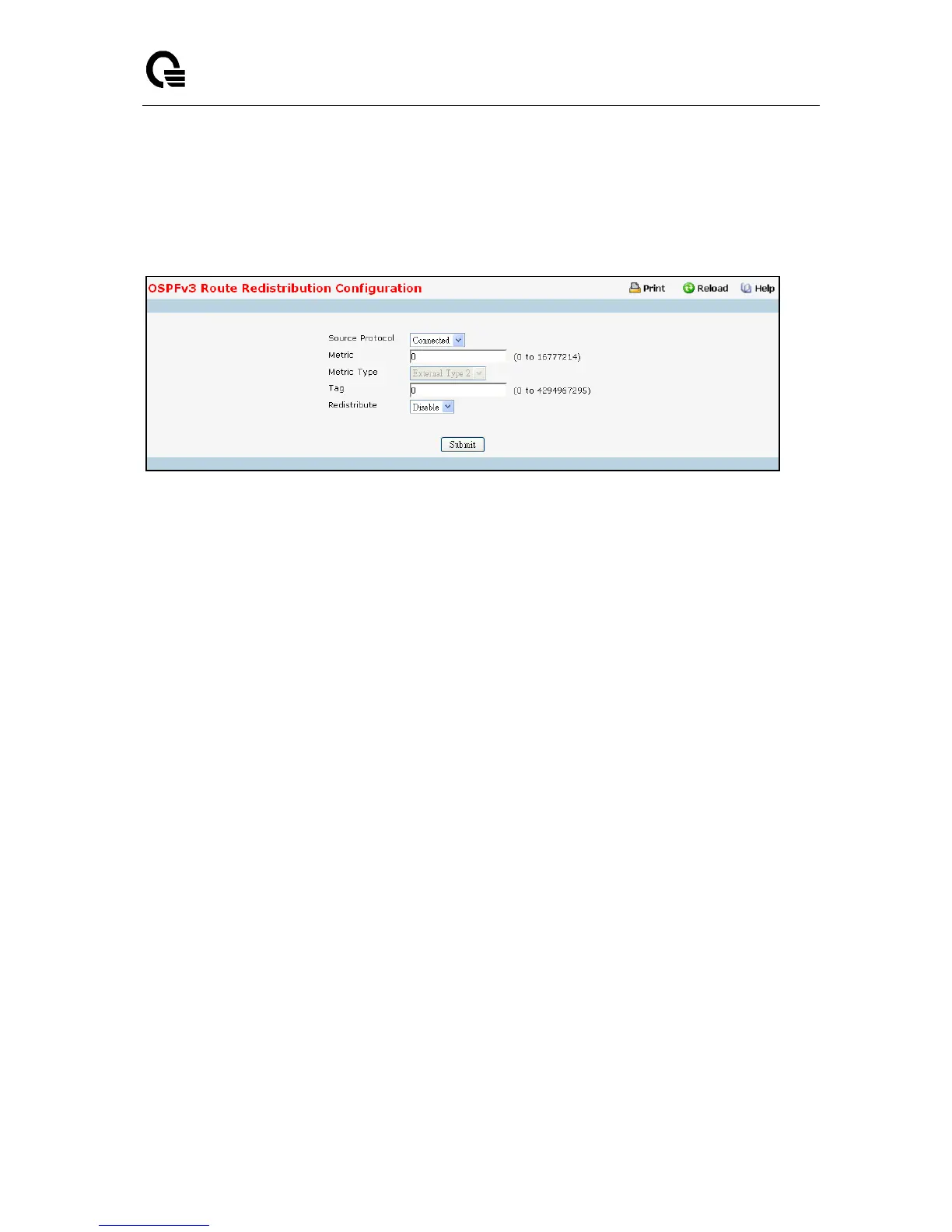

11.7.7.12 Configuring OSPFv3 Route Redistribution Configuration Page
This screen can be used to configure the OSPFv3 Route Redistribution parameters. The allowable
range for each field is displayed next to it. If an invalid value is entered in one or multiple fields, an alert
message will be displayed with the list of all the valid values.
Selection Criteria
Source Protocol - This selects the Source Protocol to be configured for redistribution by OSPF. The
following options are:
- Connected
- Static
By default it is Connected.
Metric Type - Sets the OSPFv3 metric type of redistributed routes. The following options are:
- External Type 1
- External Type 2
By default it is External Type 2.
Redistribute - Enables or disables the redistribution for the selected source protocol. It has to be
enabled to be able to configure any of the route redistribution attributes. By default it is Disable.
Configurable Data
Metric- Sets the metric value to be used as the metric of redistributed routes. This field displays the
metric if the source was pre-configured and can be modified. The valid values are (0 to 16777214)
Tag - Sets the tag field in routes redistributed. This field displays the tag if the source was
pre-configured, else a default tag value of 0 is displayed. The valid values are (0 to 4294967295)
Command Buttons
Submit - Send the updated configuration to the router. Configuration changes take effect
immediately.
