LB9 User’s Guide 1454/1523

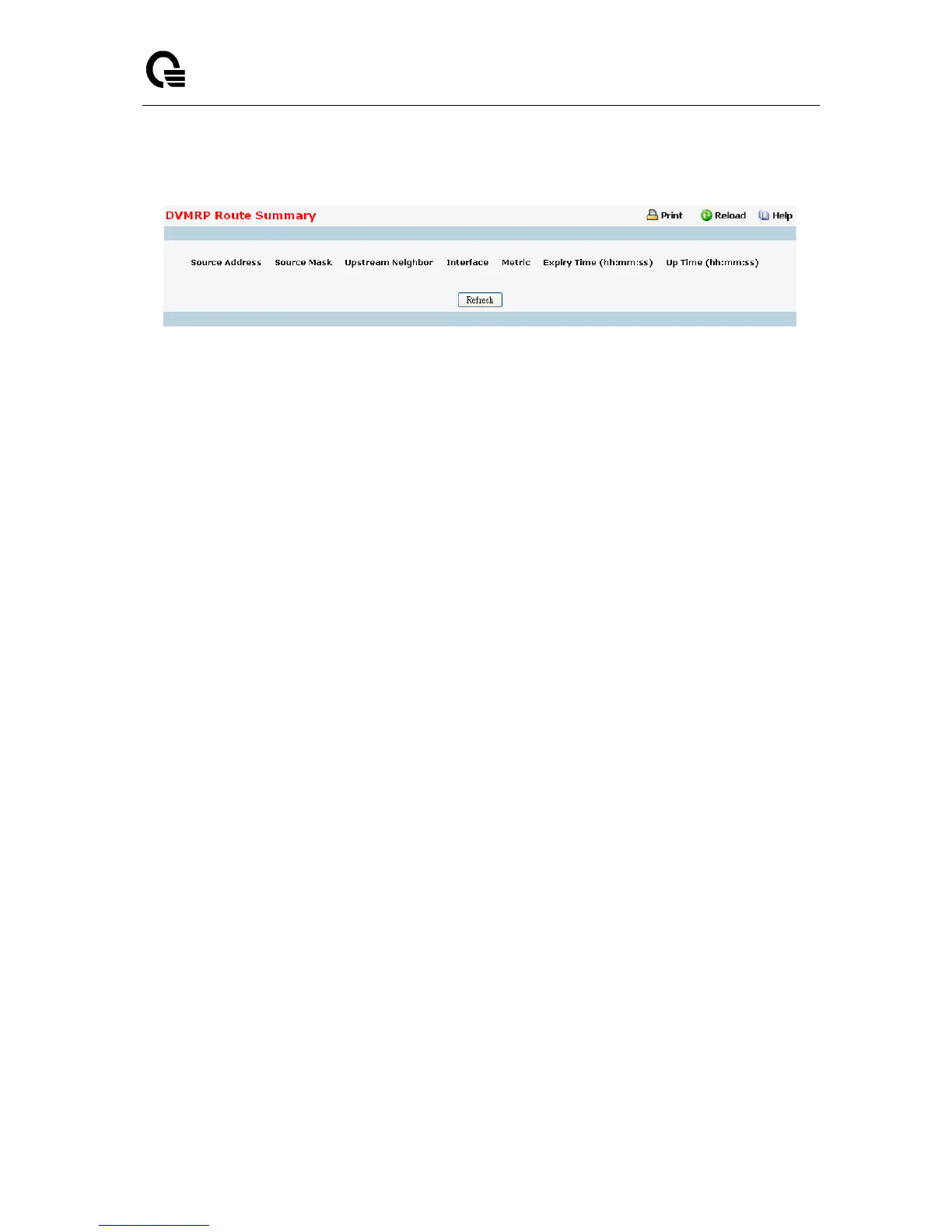

11.8.5.6 Viewing DVMRP Route Summary
Non-Configurable Data
Source Address - The network address that is combined with the source mask to identify the
sources for this entry.
Source Mask - The subnet mask to be combined with the source address to identify the sources for
this entry
Upstream Neighbor - The address of the upstream neighbor (e.g., RPF neighbor) from which IP
Datagram's from these sources are received.
Interface - The interface on which IP Datagram's sent by these sources are received. A value of 0
typically means the route is an aggregate for which no next-hop interface exists.
Metric - The distance in hops to the source subnet.
Expiry Time(hh:mm:ss) - The minimum amount of time remaining before this entry will be aged out.
Up Time(hh:mm:ss) - The time since the route represented by this entry was learned by the router.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
