LB9 User’s Guide 1469/1523
Neighbor IP Address- The IP address of the PIM neighbor for this entry.
Uptime - The time (in hours:minutes:seconds) since this PIM neighbor (last) became a neighbor of
the local router.
Expiry Time - The minimum time (in hours:minutes:seconds) remaining before this PIM neighbor
will be aged out.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the router.

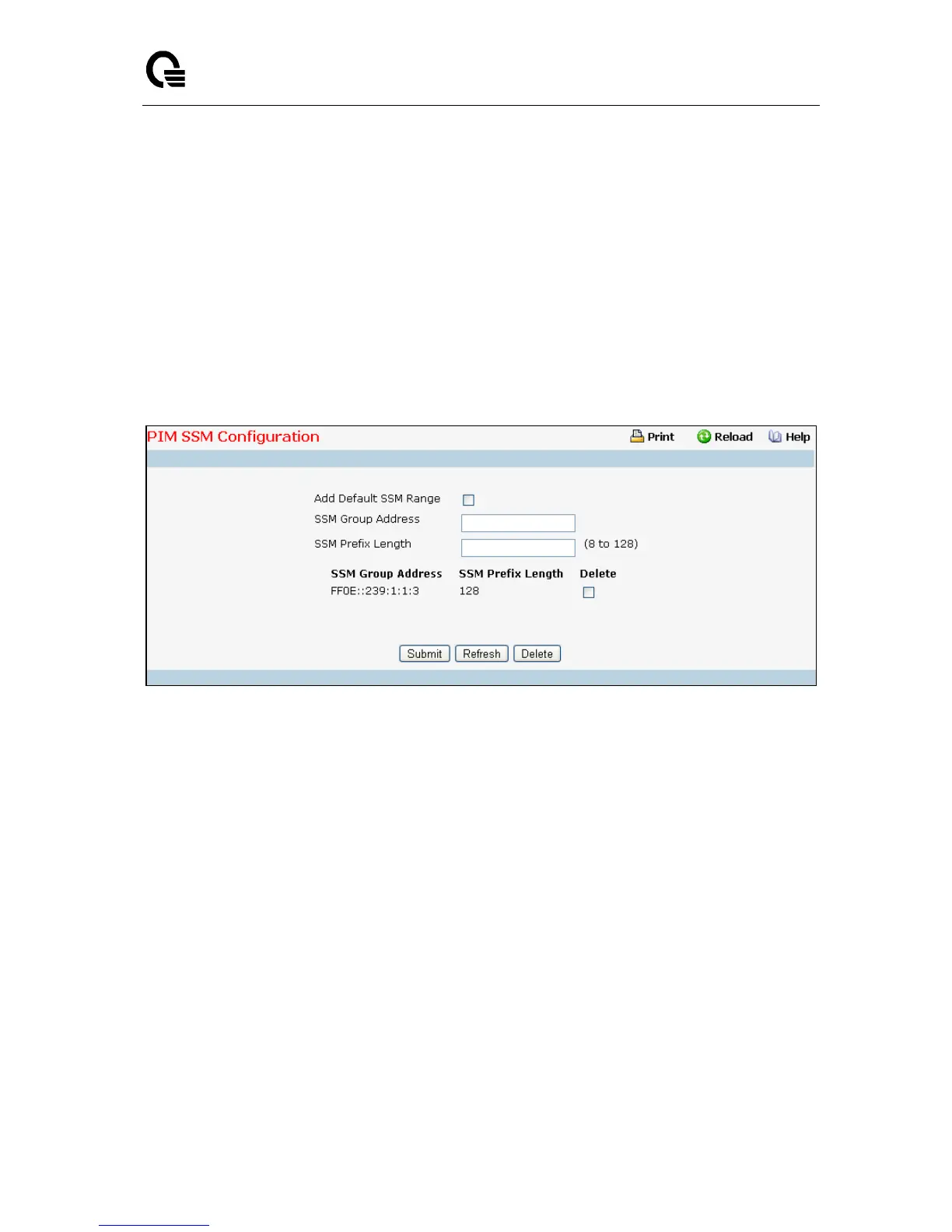

11.8.7.5 Configuring SSM
Add Default SSM Range - Select this check box to add default SSM range (232.0.0.0/8) .
Configurable Data
SSM Group Address - Enter the source-specific multicast group ip-address.
SSM Group Mask - Enter the source-specific multicast group ip-address mask.
Non-Configurable Data
SSM Group Address - Displays the source-specific multicast group ip-address.
SSM Group Mask - Displays the source-specific multicast group ip-address mask.
Delete - Check box to delete the particular entry from the table.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
Delete - Deletes the selected SSM ranges in the router.
