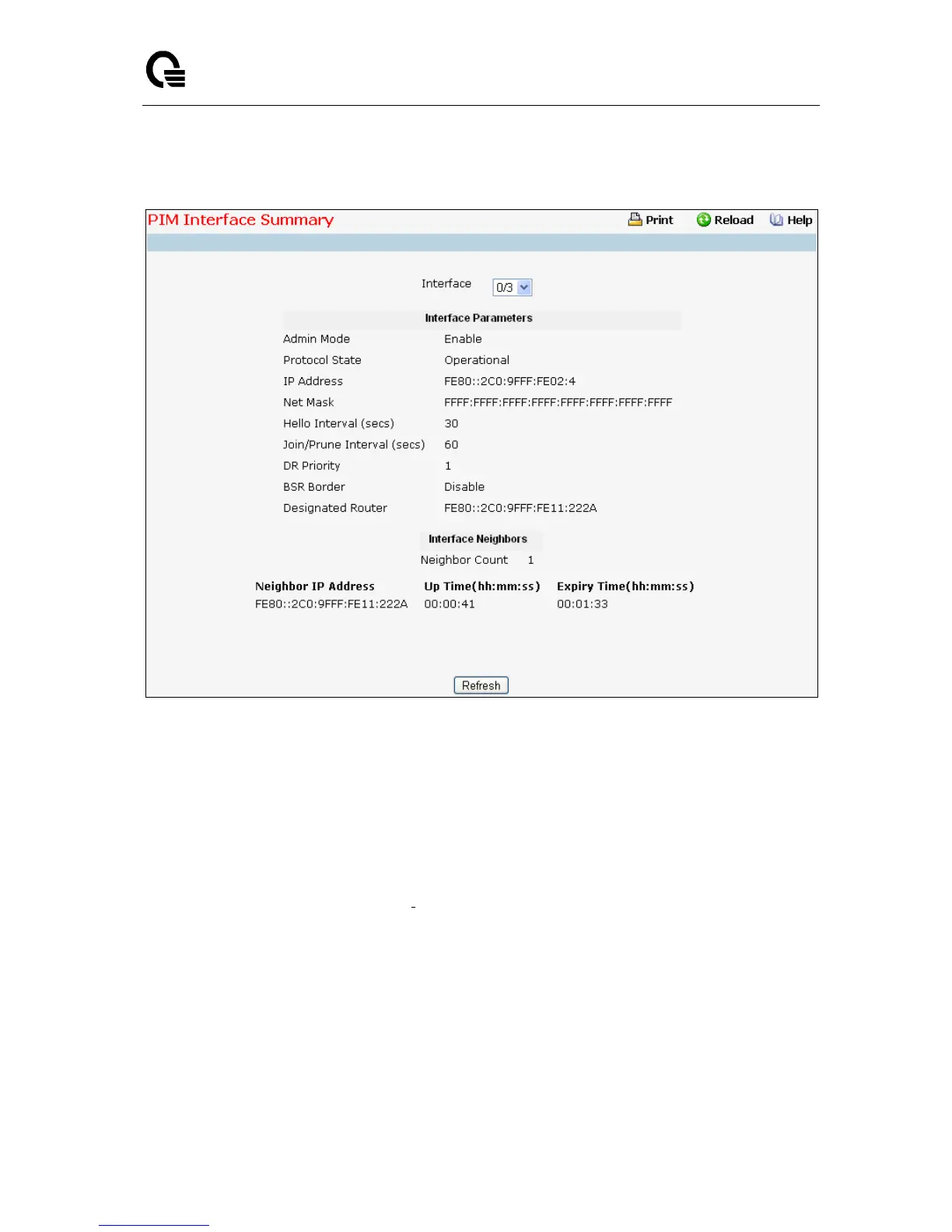

11.9.2.4 Viewing Interface’s PIM Configuration Page
Selection Criteria
Interface - Select the interface for which data is to be displayed.
Non-Configurable Data
Admin Mode - The administrative mode of PIM-SM interface in the router: either enable or disable.
Protocol State - The state of PIM in the router: either operational or non-operational.
IP Address - The IP address of the selected PIM interface.
Hello Interval (secs)- The frequency (in seconds) at which PIM hello messages are transmitted on
the selected interface.
Join/Prune Interval (secs) - The frequency (in seconds) at which PIM Join/Prune messages are
transmitted on this PIM interface. This field is always shown with defaults for PIMDM as
configurability is not supported in PIMDM.
DR Priority - Indicates the DR priority on the PIM interface. This field is supported in PIMSM only
and hence shown for PIMSM only.
BSR Border - Specifies the BSR border mode on the PIM interface. This field is supported in
PIMSM only and hence shown for PIMSM only.
