LB9 User’s Guide 1499/1523

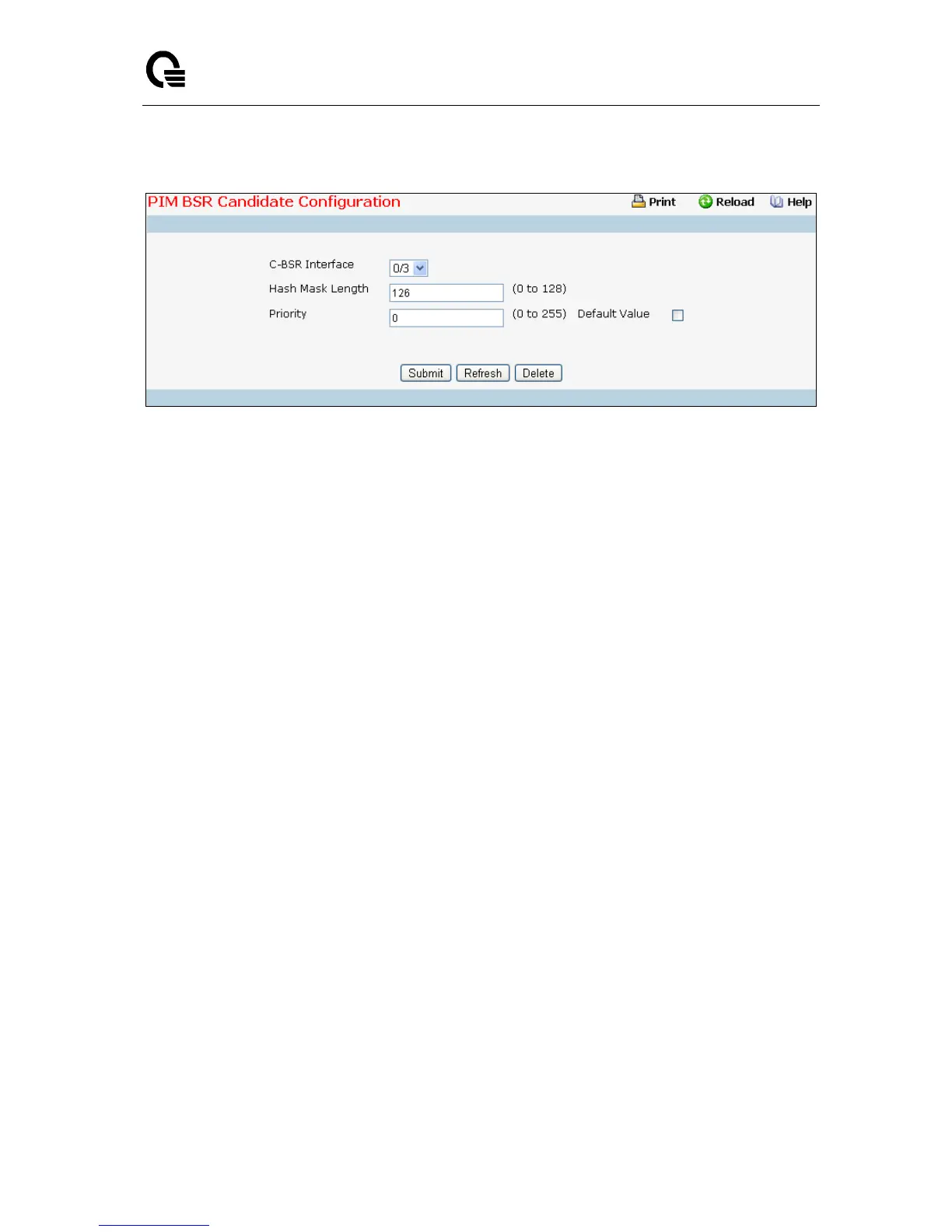

11.9.2.9 Configuring PIM BSR Candidate Configuration Page
Selection Criteria
C-BSR Interface - Select the interface for which data is to be displayed or configured.
Configurable Data
Hash Mask Length - T Enter the C-BSR hash mask length to be advertised in bootstrap messages.
This hash mask length will be used in the hash algorithm for selecting the RP for a particular group.
The valid values are from (0 to 128). Default value is 126.
Priority - Enter the priority of C-BSR. The valid values are from (0 to 255). Default value is 0.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
Delete - Deletes the candidate BSR configured on the router.
