LB9 User’s Guide 1521/1523

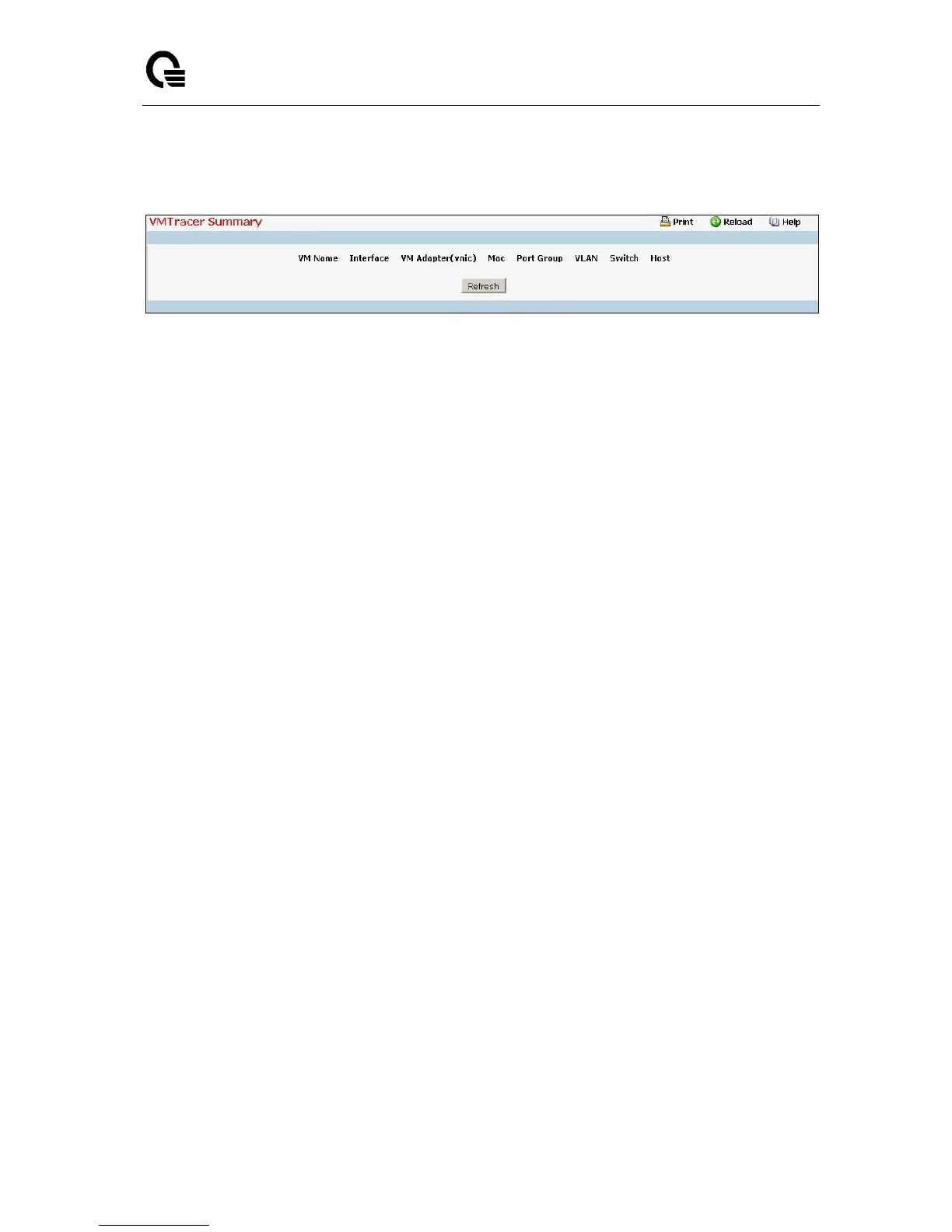

11.10.7.3 Viewing VM Tracer Summary
Configurable Data
VM Name - Name of the virtual machine
Interface - The switch's interface that connects to VM host
VM Adapter(vnic) - the vistual machine's interface
Mac - The MAC address associated to VM Adapter.
Port Group - The port group associated to VM host.
VLAN - The VLAN associated to portgroup that the VM use.
Switch - The name of the virtual switch associated to VM host
Host - The name of the VM host
Command Buttons
Refresh - Update the switch with the values on this screen. If you want the switch to retain the new
values across a power cycle, you must perform a save.
