UANTA COMPUTER INC.

Layer 2/3/4 Managed Switch

_____________________________________________________________________________

LB9 User’s Guide 30/1523

be connected to the Diagnostics port. This is an RS-232 port with a 9-socket D-shell connector and

DCE-type wiring. Make the connection as follows:

1. Obtain suitable cabling for the connection.You can use a null-modem RS-232 cable or an

ordinary RS-232 cable and a null-modem adapter. One end of the cable (or cable/adapter

combination) must have a 9-pin D-shell connector suitable for the Diagnostics port; the other end

must have a connector suitable for the console’s serial communications port.

2. Power down the devices, attach the cable (or cable/adapter combination) to the correct ports,

and restore power.

3. Set the console to use the following communication parameters for your terminal:

 The console port is set for the following configuration:

 Baud rate: 115,200

 Data width: 8 bits

 Parity: none

 Stop bits: 1

 Flow Control: none

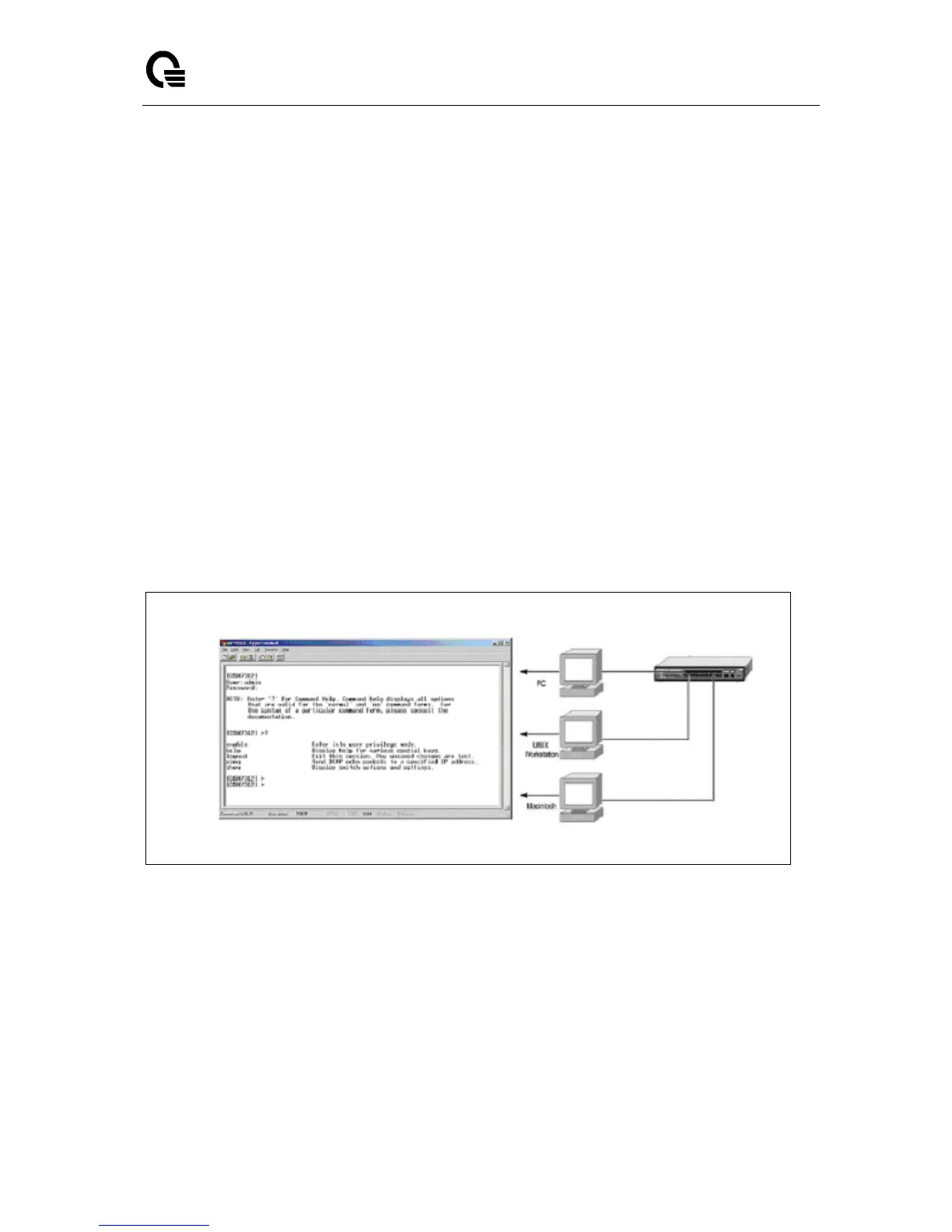

A typical console connection is illustrated below:

Figure 3-1: Console Setting Environment
