Quick Start

R&S

ESR

101User Manual 1175.7068.02 ─ 12

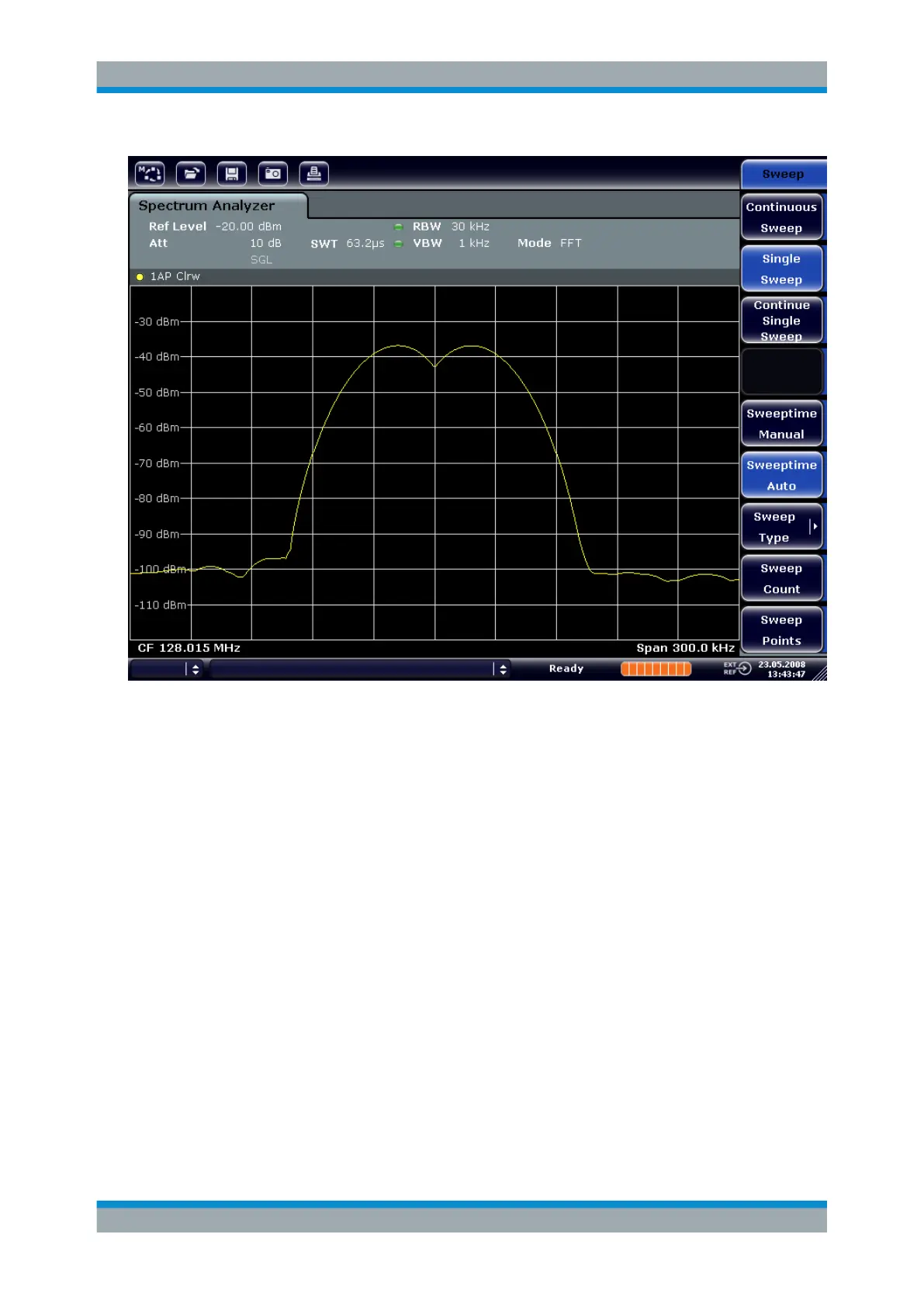

Figure 3-11: Measurement of two equally-leveled RF sinusoidal signals with the resolution band-

width which corresponds to the frequency spacing of the signals

Matching generator and R&S ESR frequencies

The level drop is located exactly in the center of the screen only if the generator

frequencies match the frequency display of the R&S ESR exactly. To achieve exact

matching, the frequencies of the generators and the R&S ESR must be synchron-

ized.

5. Set the resolution bandwidth to 100 kHz. To do so, in the bandwidth menu, press

the "Res BW Manual" softkey and enter 100 kHz.

It is no longer possible to clearly distinguish the two generator signals.

Basic Measurement Examples
