102User Manual 1175.7068.02 ─ 12

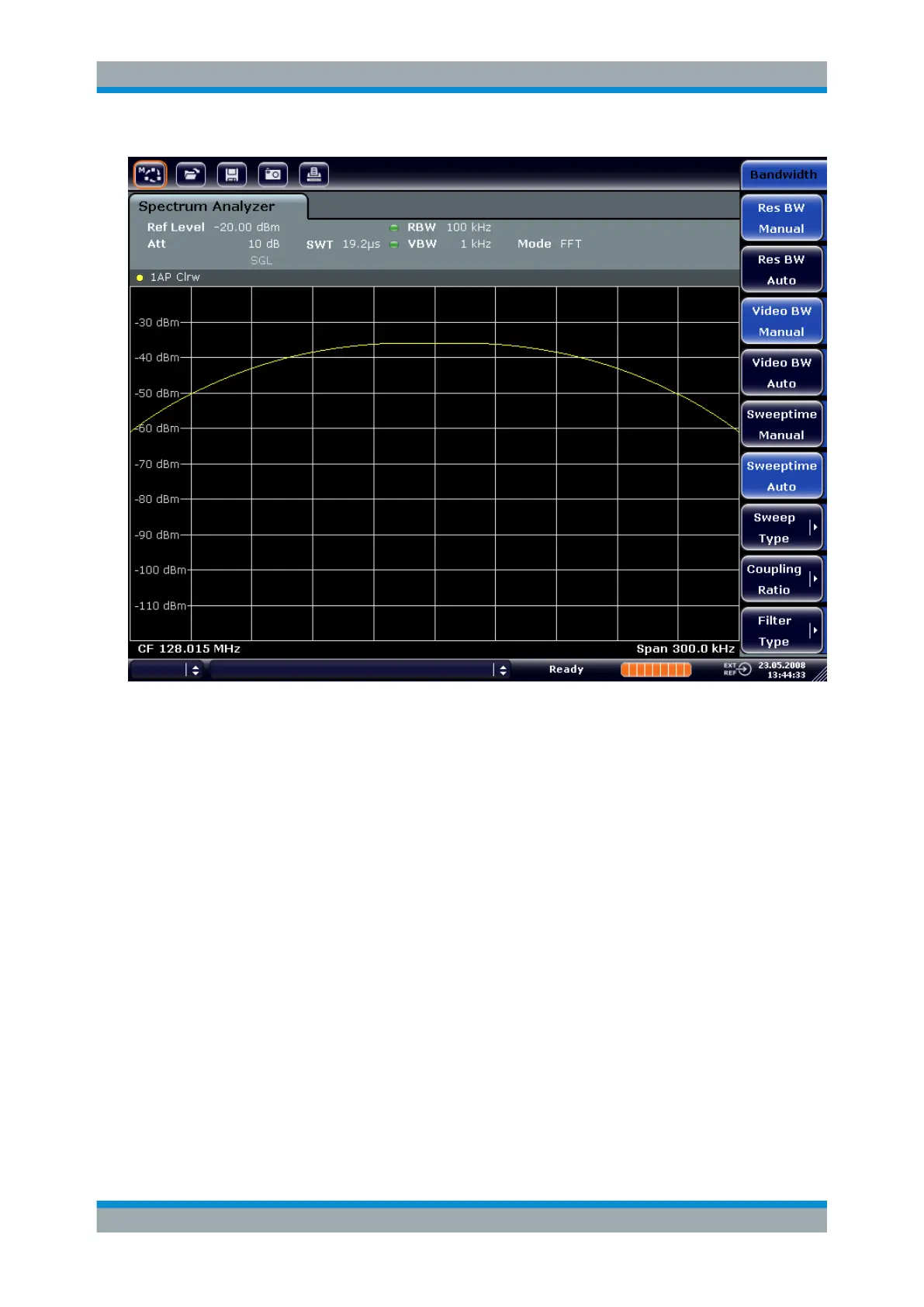

Figure 3-12: Measurement of two equally-leveled RF sinusoidal signals with a resolution band-

width which is larger than their frequency spacing

Note: Reducing the resolution bandwidth. The resolution bandwidth (RBW) can be

reduced again by turning the rotary knob counterclockwise, thus yielding a higher

frequency resolution.

6. Set the resolution bandwidth to 1 kHz. To do so, in the bandwidth menu, press the

"Res BW Manual" softkey and enter 1 kHz.

The two generator signals are shown with high resolution. However, the sweep

time becomes longer. At smaller bandwidths, the noise display decreases simulta-

neously (10 dB decrease in noise floor for a decrease in bandwidth by a factor of

10).
