Spectrum Measurements
R&S
®
ESR
258User Manual 1175.7068.02 ─ 12

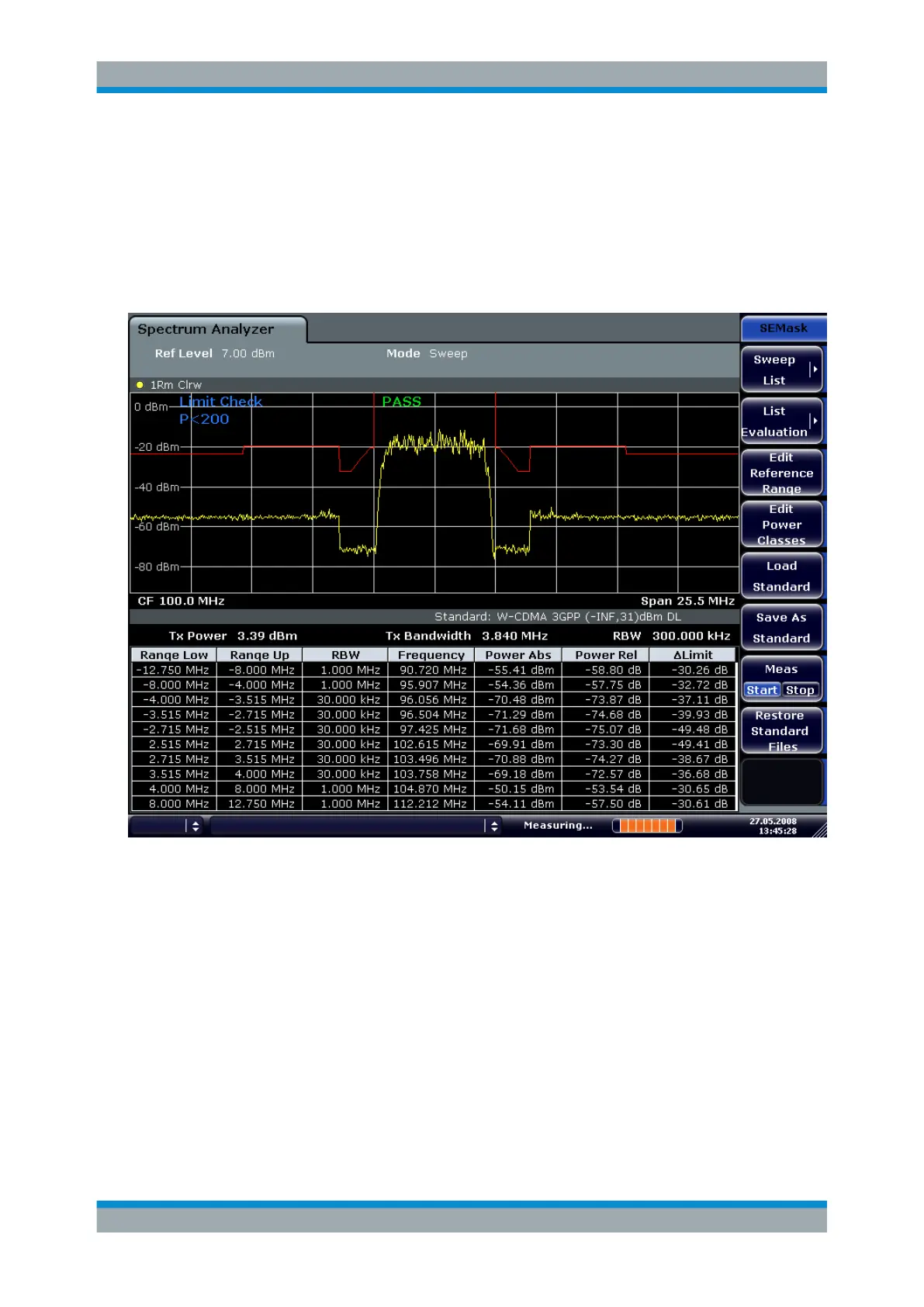

Spectrum Emission Mask
Opens a submenu to configure the Spectrum Emission Mask measurement.
The Spectrum Emission Mask (SEM) measurement defines a measurement that moni-
tors compliance with a spectral mask. The SEM measurement of the base unit allows a
flexible definition of all parameters in the SEM measurement.
For general information on performing SEM measurements, see Chapter 6.1.1.5,
"Measuring with Spectrum Emission Masks", on page 256.
Remote command:
SENS:SWE:MODE ESP, see [SENSe:]SWEep:MODE on page 761
Sweep List ← Spectrum Emission Mask
Opens a submenu to edit the sweep list and displays the "Sweep List" dialog box.
Sweep List dialog box ← Sweep List ← Spectrum Emission Mask
After a preset, the sweep list contains a set of default ranges and parameters. For
each range, you can change the parameters listed below. To insert or delete ranges,
use the "Insert Before Range", "Insert After Range", "Delete Range" softkeys. The
measurement results are not updated during editing but on closing the dialog box ("Edit
Sweep List/ Close Sweep List" softkey, see "Close Sweep List" on page 262).
