Tracking Generator

R&S

ESR

486User Manual 1175.7068.02 ─ 12

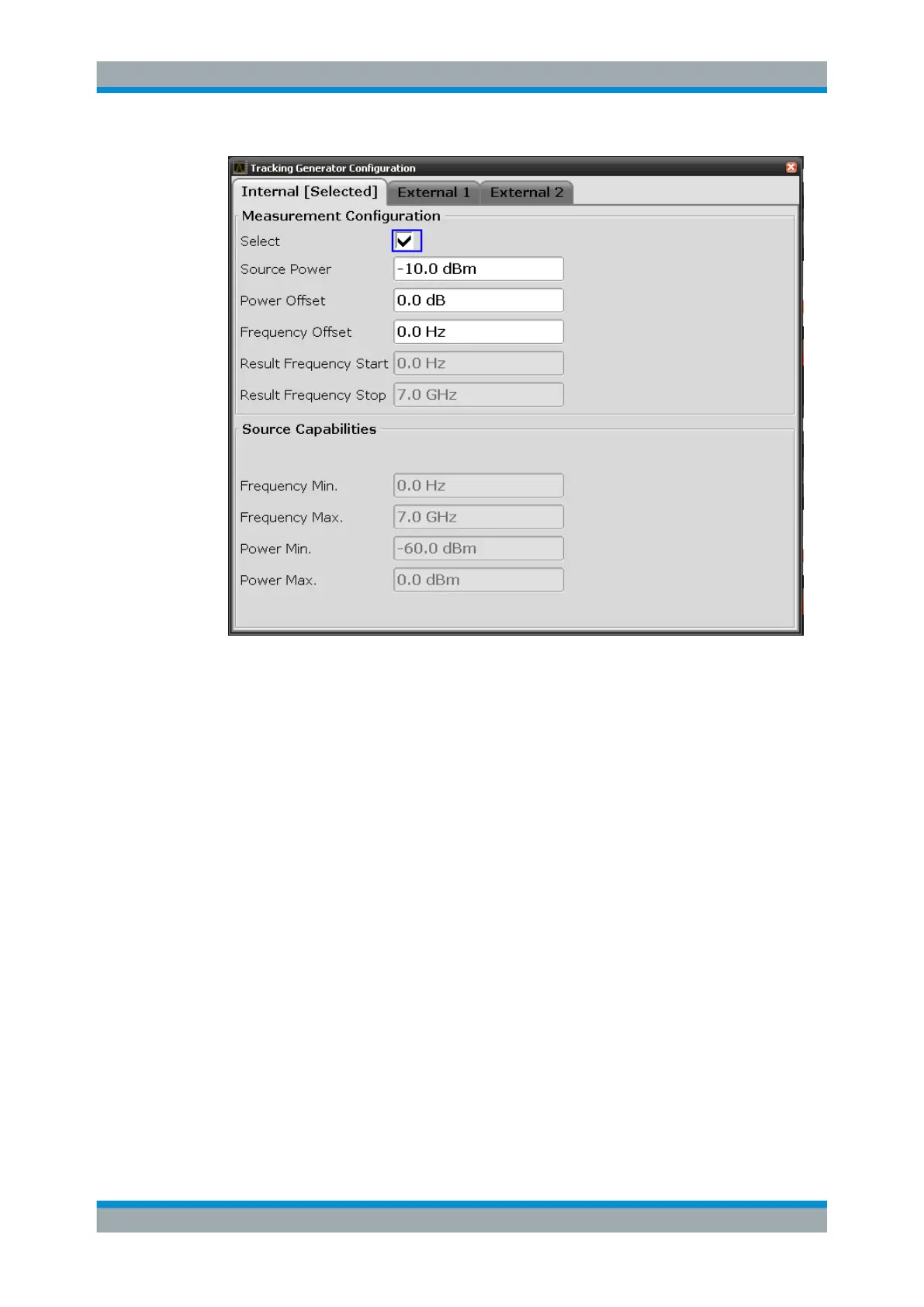

The configuration dialog box contains the following fields:

Select

Selects the internal tracking generator as the current tracking generator source. "Inter-

nal" is displayed as the source on the "Source RF" softkey. All tracking generator func-

tions are performed with the currently selected source.

Note: Note that the generator is not automatically activated when it is selected. To acti-

vate the currently selected generator, click the "Source RF On" softkey.

Source Power

The tracking generator output power. The default output power is -20 dBm. The range

is specified in the data sheet.

Remote command:

SOURce<n>:POWer[:LEVel][:IMMediate][:AMPLitude] on page 905

Power Offset

Constant level offset for the tracking generator. Values from -200 dB to +200 dB in 1

dB steps are allowed. The default setting is 0 dB. Offsets are indicated by the

enhancement label "LVL" in the diagram header (see also Chapter 8.5, "Displayed

Information and Errors", on page 500).

With this offset, attenuators or amplifiers at the output connector of the tracking gener-

ator can be taken into account for the displayed output power values on screen or dur-

ing data entry, for example. Positive offsets apply to an amplifier and negative offsets

to an attenuator subsequent to the tracking generator.
