R&S ESR Series User Manual

System Configuration
R&S
®
ESR
519User Manual 1175.7068.02 ─ 12
Configure Monitor ← General Setup
Determines and displays the configuration of a connected external monitor, if available.
In the configuration dialog box, you can switch from the internal monitor (laptop icon) to
the external monitor (monitor icon), or both (double monitor icon). For external, the
R&S ESR display is disabled (turns dark). The screen content formerly displayed on
the R&S ESR is displayed on the external screen.
For further details, refer to Chapter 3.2.3, "Connecting an External Monitor",
on page 48.
Soft Frontpanel ← General Setup
Activates or deactivates the display of the instrument emulation.
deactivated Only the measurement screen is displayed. This is the setting for working at the
R&S ESR.
activated In addition to the measurement screen, the whole front panel is displayed, i.e. the
hardkeys and other hardware controls of the device are simulated on the screen.
This is the setting for working at a computer with Remote Desktop or at an external
monitor.

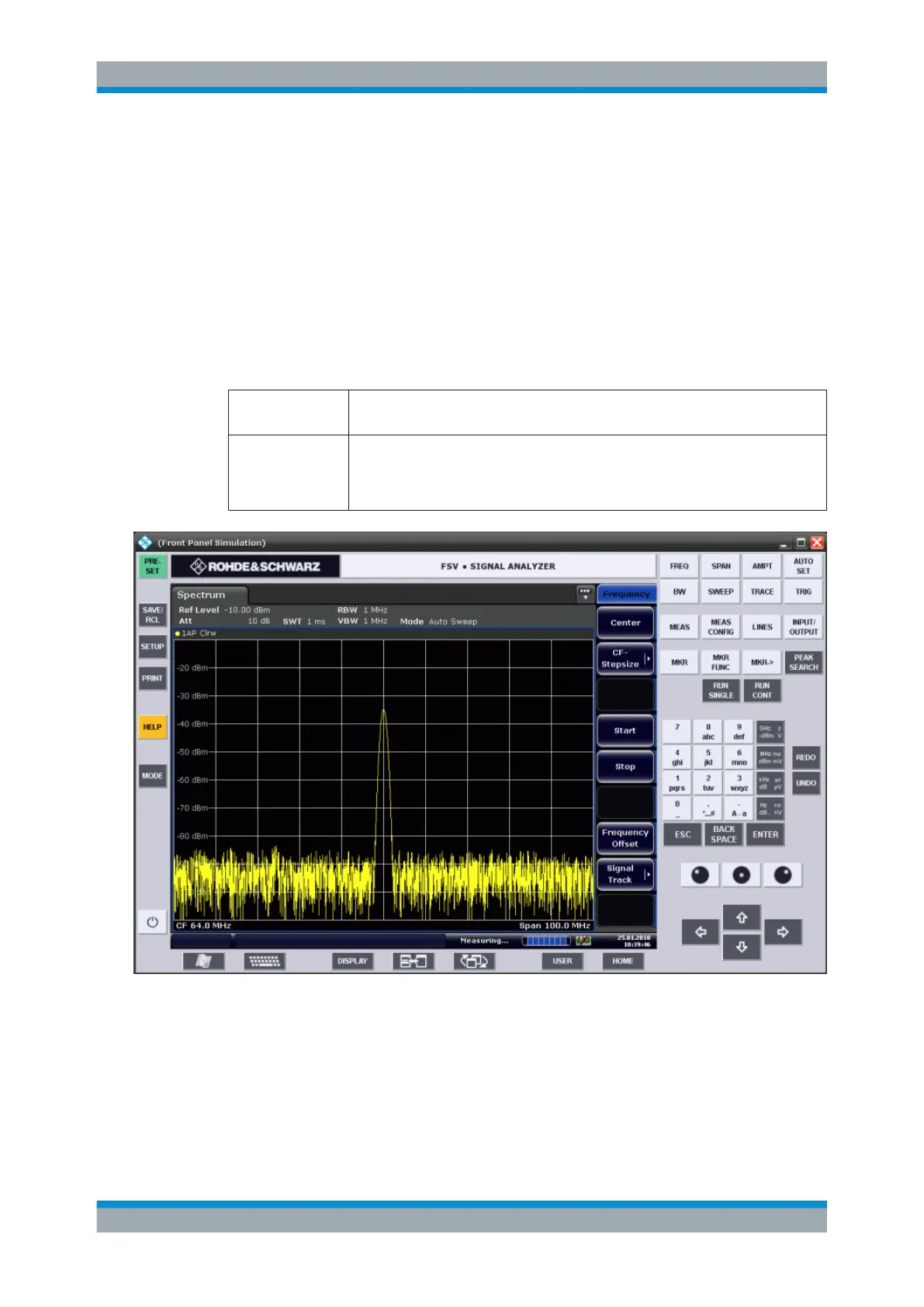

Figure 9-1: Soft frontpanel
Alternatively to this softkey, you can use the F6 key.
Remote command:
SYSTem:DISPlay:FPANel on page 924
Display Setup
Opens a submenu to define the display settings.
Instrument Setup and Interface Configuration – SETUP Key
