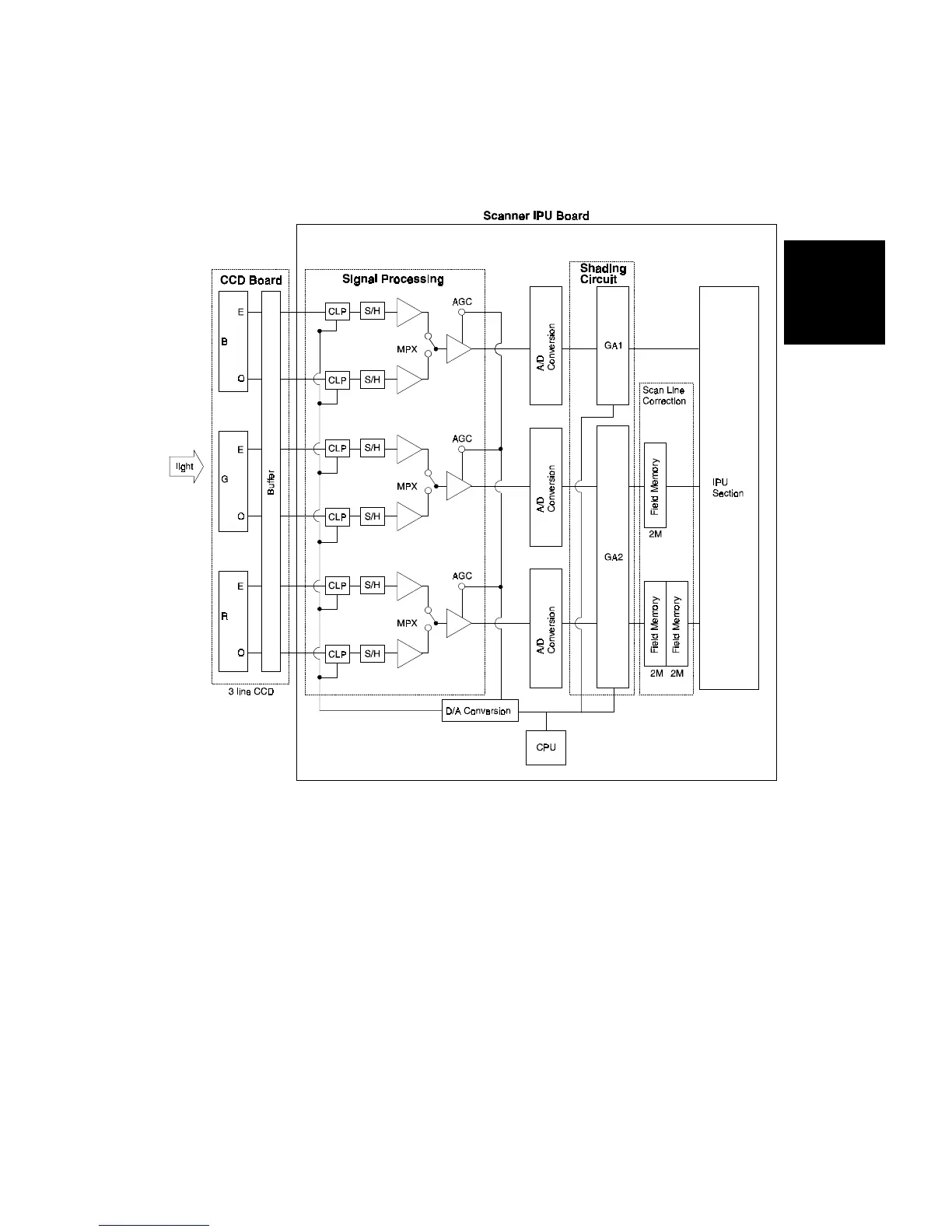

4.2 SCANNER SECTION BLOCK DIAGRAM
CLP (Clamp):
Defines the standard black level signals for the black signal.
S/H (Sample and Hold):
Samples the analog image data signals.
MPX (Multiplexer):
Combines the even-pixel and odd-pixel analog signals.
AGC (Auto Gain Control):
Controls the amplification factor for the signals,
using the white level data feedback signal.
Detailed
Section
Descriptions
IMAGE PROCESSING
SM 2-39 A166/A187/A189
