2. COMPONENT LAYOUT

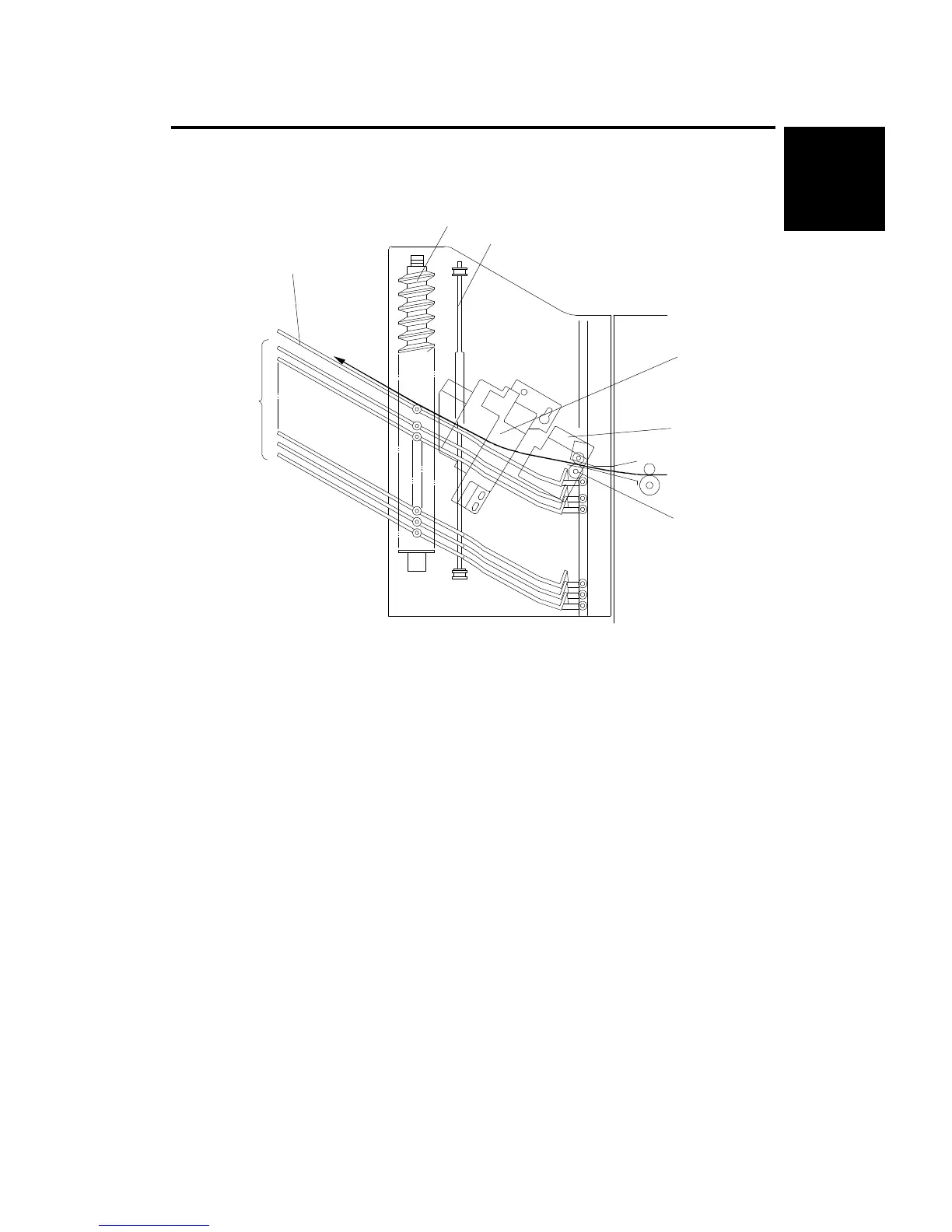

2.1 MECHANICAL COMPONENT LAYOUT
7
1
2
3
4
5
6
1. Helical Wheels
2. Jogger Plate
3. Grip Assembly
4. Transport Rollers
5. Staple Unit
6. Bins
7. Proof Tray
10-Bin
Sorter Stapler
ST10 (A555)
