6. DEVELOPMENT UNIT
6.1 DEVELOPER
6.1.1 Developer Collection

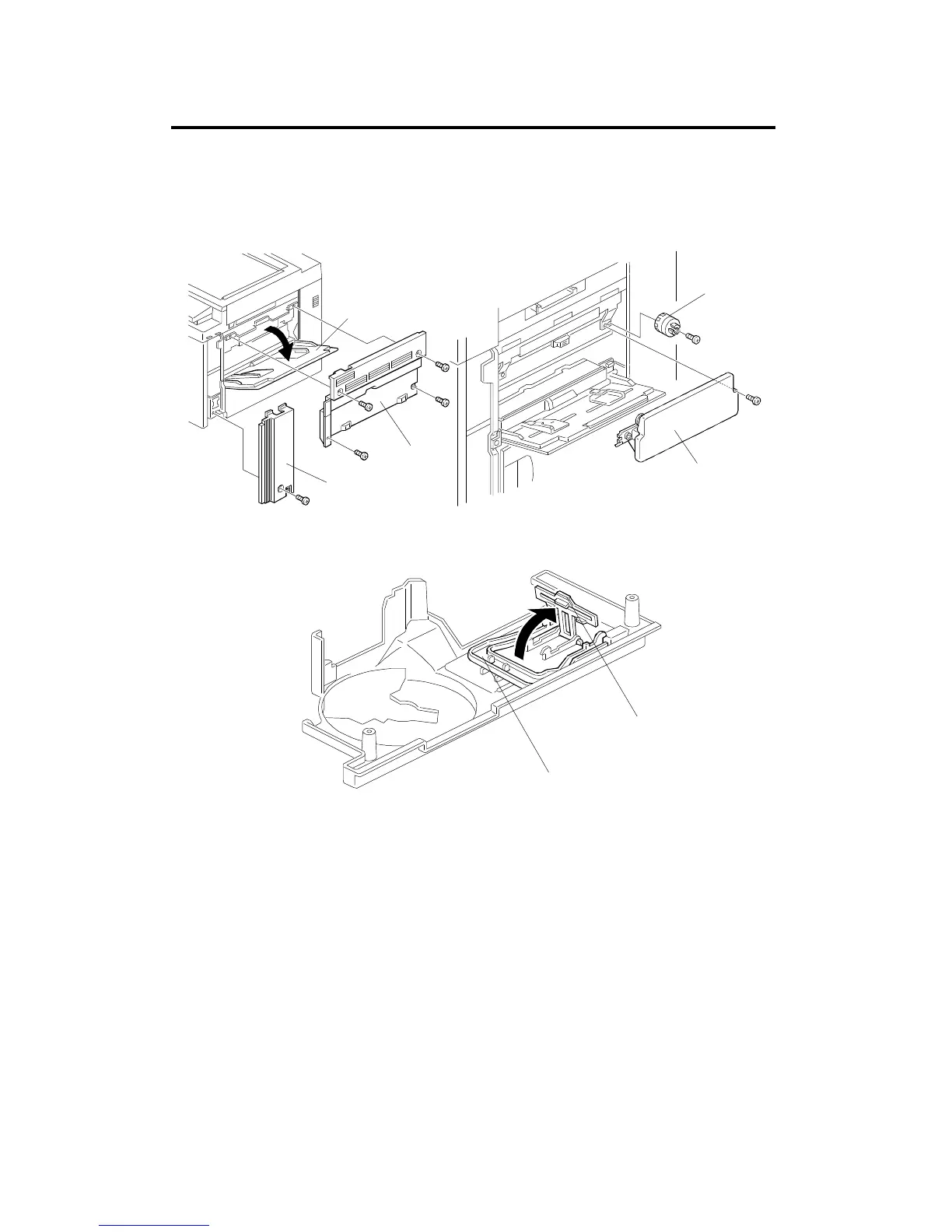

1. Remove the following outer covers.
(1) Right front cover [A] (1 screw)
(2) Right cover [B] (open the by-pass feed table [C], then remove 4
screws)
2. Remove the developer collection bottle/supply funnel ass’y [D] (1 screw).
Then remove the development roller rotation handle [E] (1 screw).
3. Raise the retainer [F] to remove handle [G] from the rear of the upper
inner cover.
