9.3.4 Cleaning Mechanism

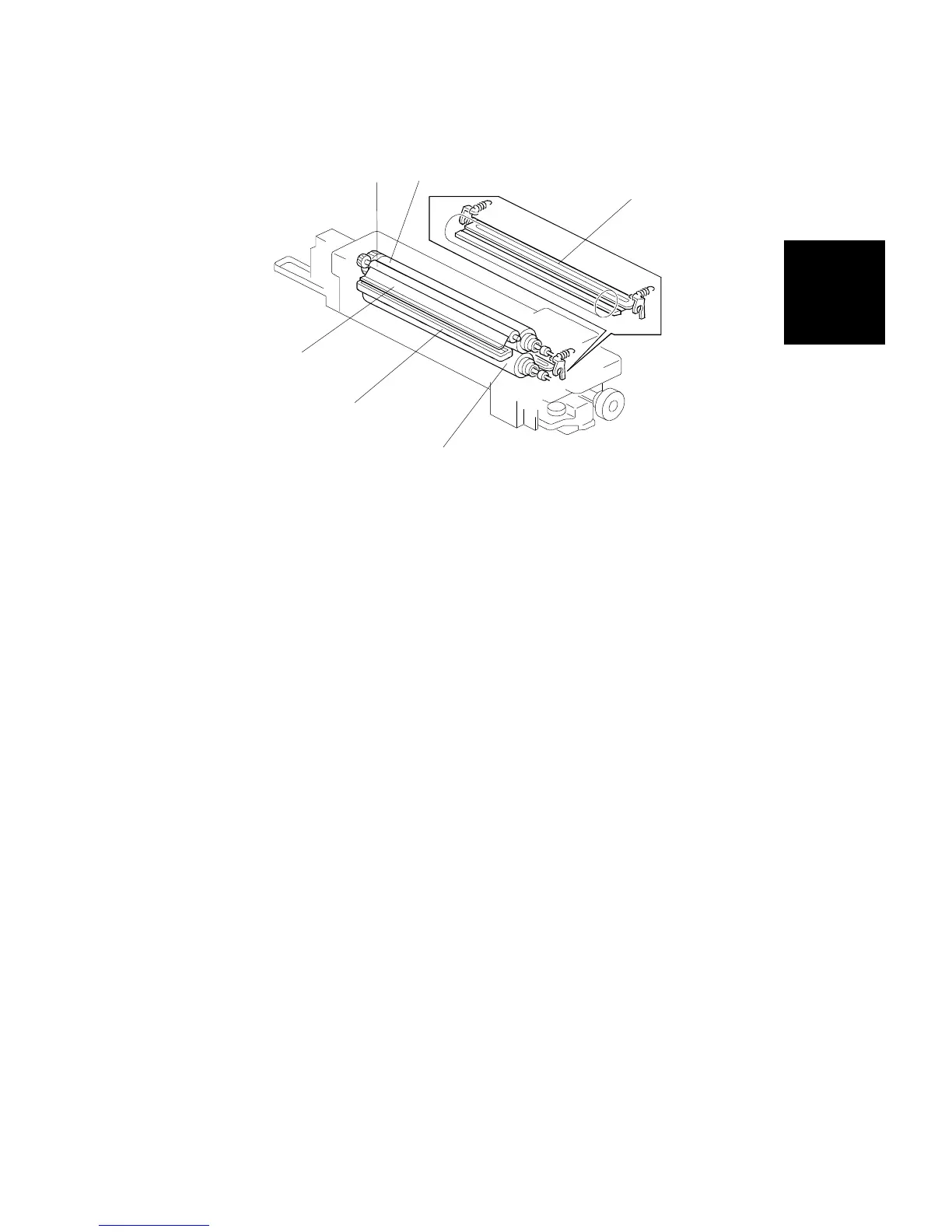

The hot roller cleaning roller [A], which is always in contact with hot roller,
collects toner and paper dust adhering to the surface of the hot roller [B].
The surface of the cleaning roller is coated with teflon.
The collected matter is scraped off by a stainless steel blade [C], and goes
to the cleaning roller oil pan [D].
The pressure roller [E] has a cleaning blade [F] to clean the pressure roller.
[A]
[F]
[C]
[E]
[D]
[B]
Detailed
Section
Descriptions
PAPER TRANSPORT AND IMAGE FUSING
SM 2-129 A166/A187/A189
