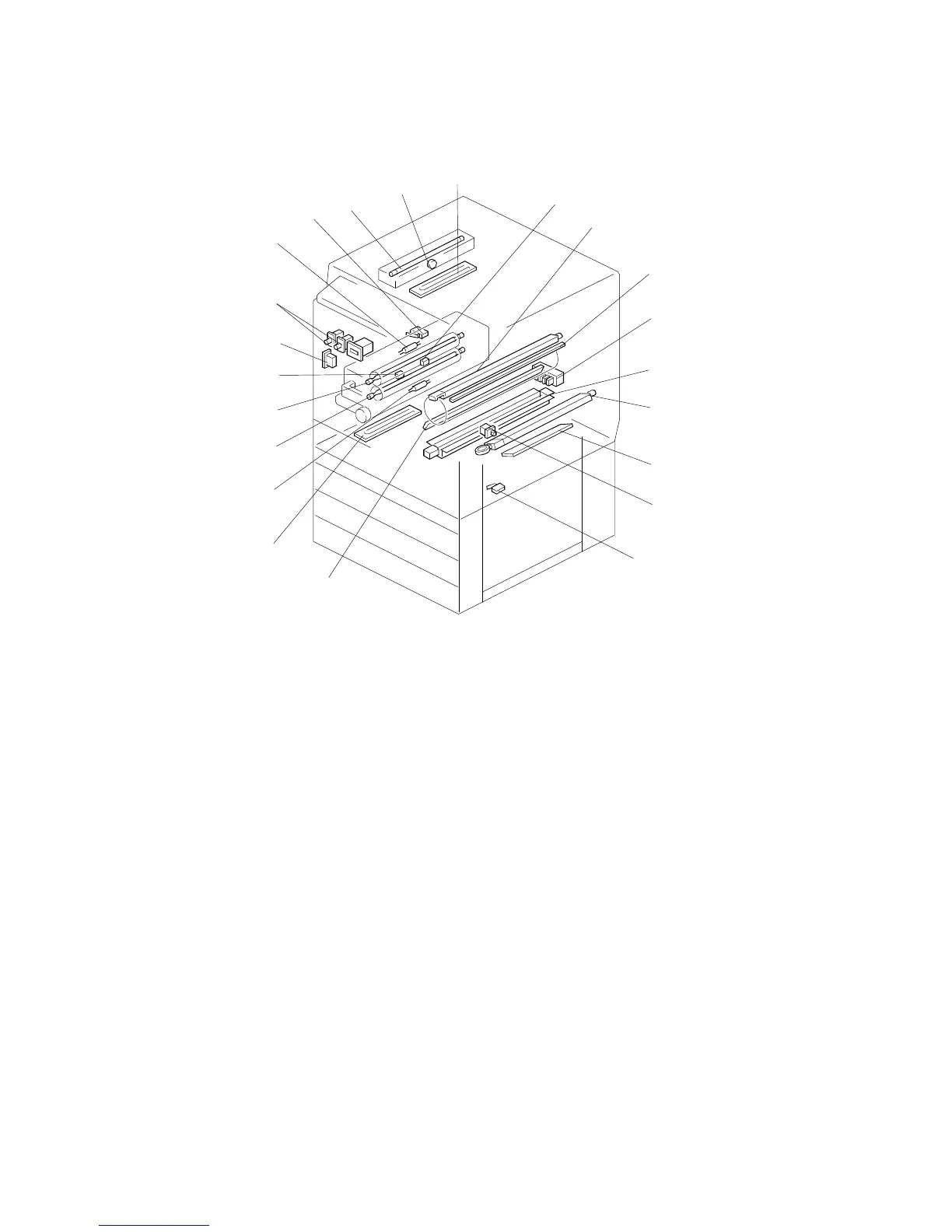

4.5 SWITCHES AND HEATERS
12
1
2
3
4
5
6
7
8
10
11
19
18
17
15
13
14
9
16
20
21
22
1. Lower Tray Heater
2. Pressure Roller Thermofuse
3. Pressure Roller Lamp
4. Fusing Lamp
5. Pressure Roller Thermistor
6. Main Switch
7. Front Door Switch
8. Fusing Thermofuse
9. Paper Exit Door Switch
(A187/A189 only)
10. Exposure Lamp
11. Thermostat
12. Optics Anticondensation
Heater
13. Fusing Thermistor
14. Charge Corona Unit
15. Quenching Lamp
16. Tray Paper Size SW
(A166 only)
17. Paper Transfer Charge Unit
18. Belt Transfer Charge Unit
19. Drum Heater
20. By-pass Feed Table SW
21. Vertical Transport SW
22. Pre-transfer Lamp
PARTS LAYOUT
A166/A187/A189 1-20 SM
