9.4.3 Paper Exit Door (A187/A189 copiers only)

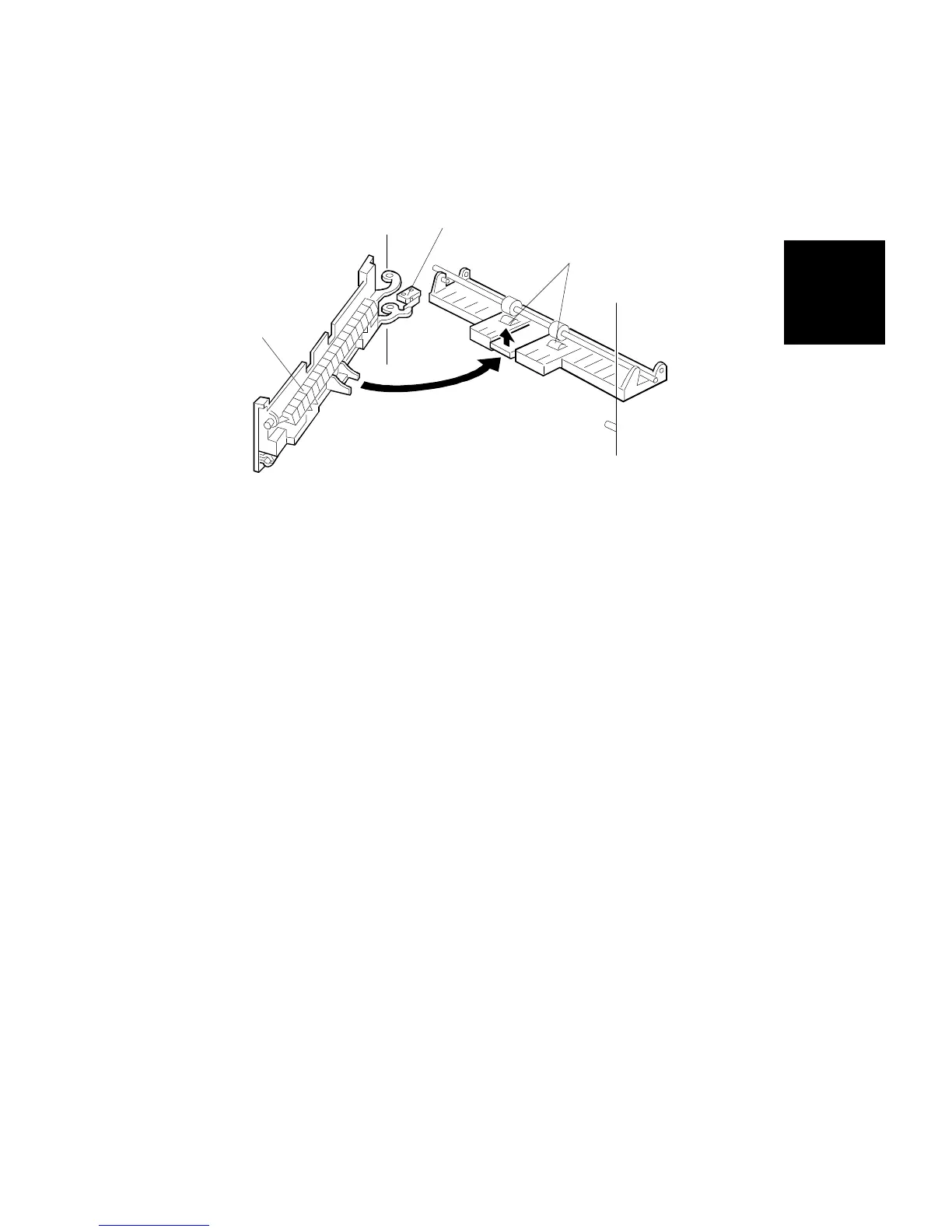

To remove misfed paper in the duplex unit easily, the paper exit door [A] of
the duplex machine can be opened. When this door is opened, the duplex
transport rollers [B] are released. The paper exit door switch SW9[C] detects
when the paper exit door is opened.
