10.4 DUPLEX FEED MOTOR REPLACEMENT

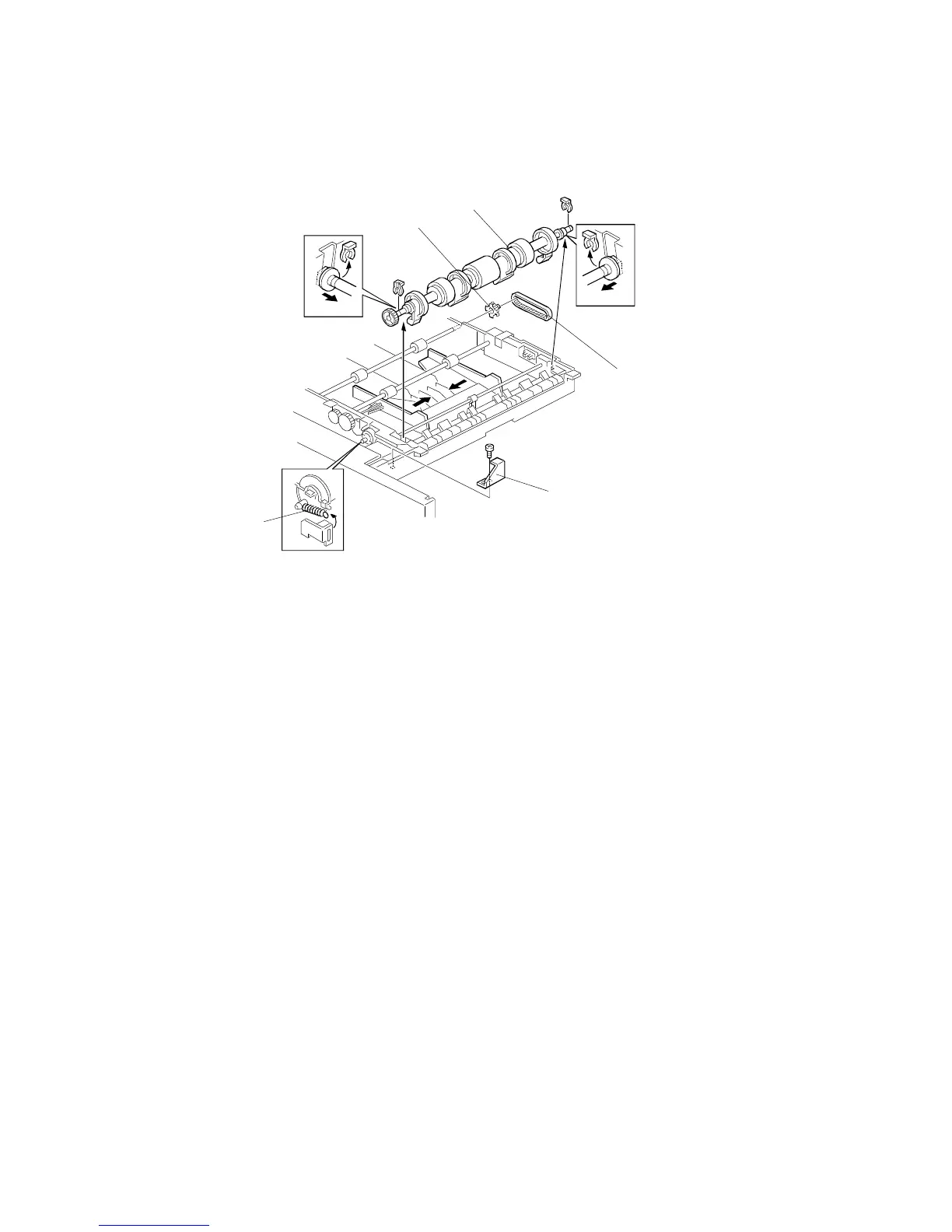

1. Perform steps 1 through 4 in procedure 10.3.
2. Remove the bracket [A] (1 screw).
3. Remove the feed roller shaft assembly [B] (2 snap-rings).
4. Remove the pulley [C] and the timing belt [D].
5. Remove the pressure spring [E].
[D]
[B]
[C]
[A]
[E]
