Ricoh A66 - Grip Arm Replacement

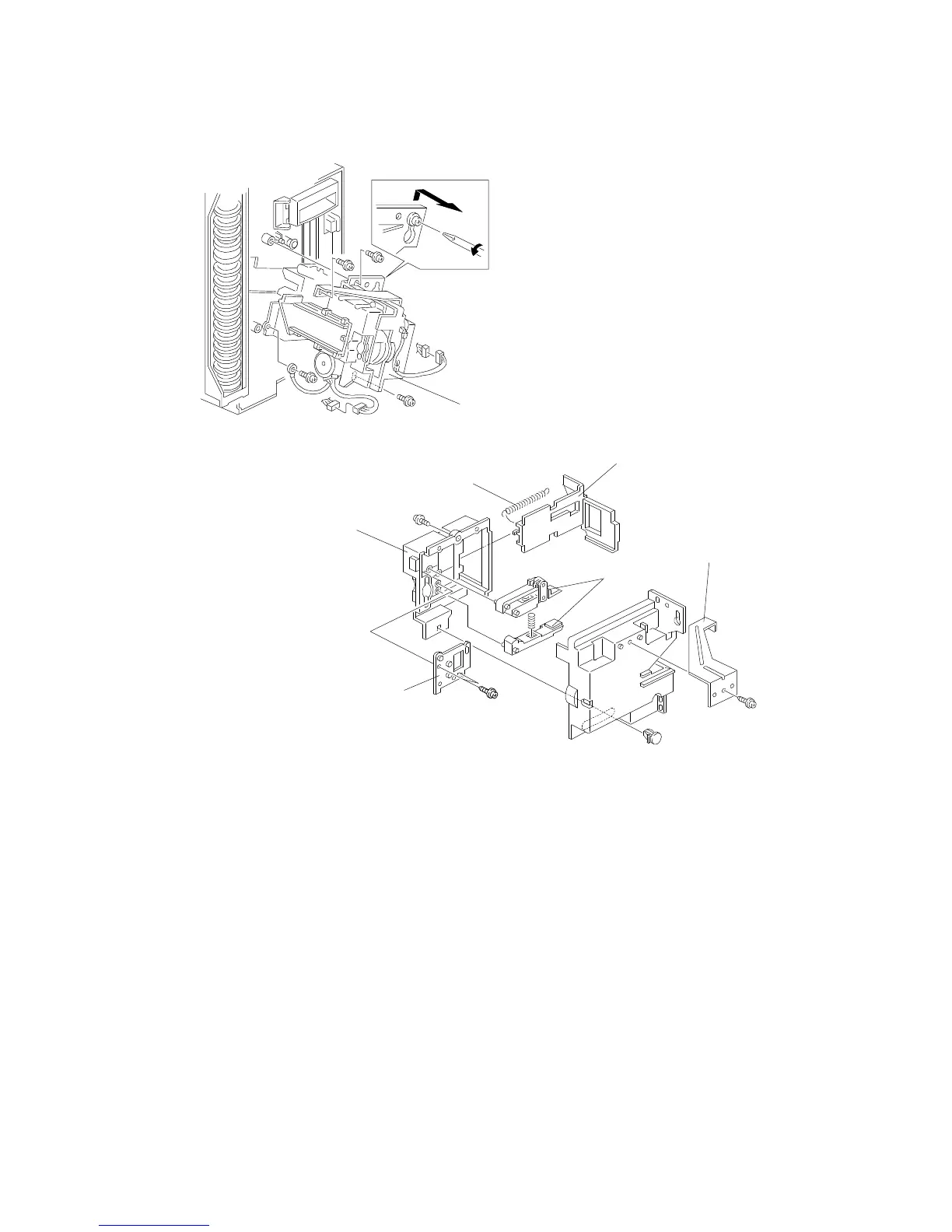

5.3 GRIP ARM REPLACEMENT
1. Remove the front cover (see Exterior Cover Removal).
2. Remove the grip assembly [A] (4 screws, 2 connectors, 1 grounding wire).
3. Remove the holder bracket [B] (1 screw).
4. Remove the spring [C] and remove the slider [D].
5. Remove the grip arm unit [E] (1 screw, 1 clip).
6. Remove the grip arm plate [F] (2 screws).
7. Replace the grip arms [G].
[A]
[D]
[C]
[E]
[F]
[G]
[B]
