7.4 ORIGINAL SET AND ORIGINAL WIDTH SENSOR
REPLACEMENT
1. Turn off the main switch.

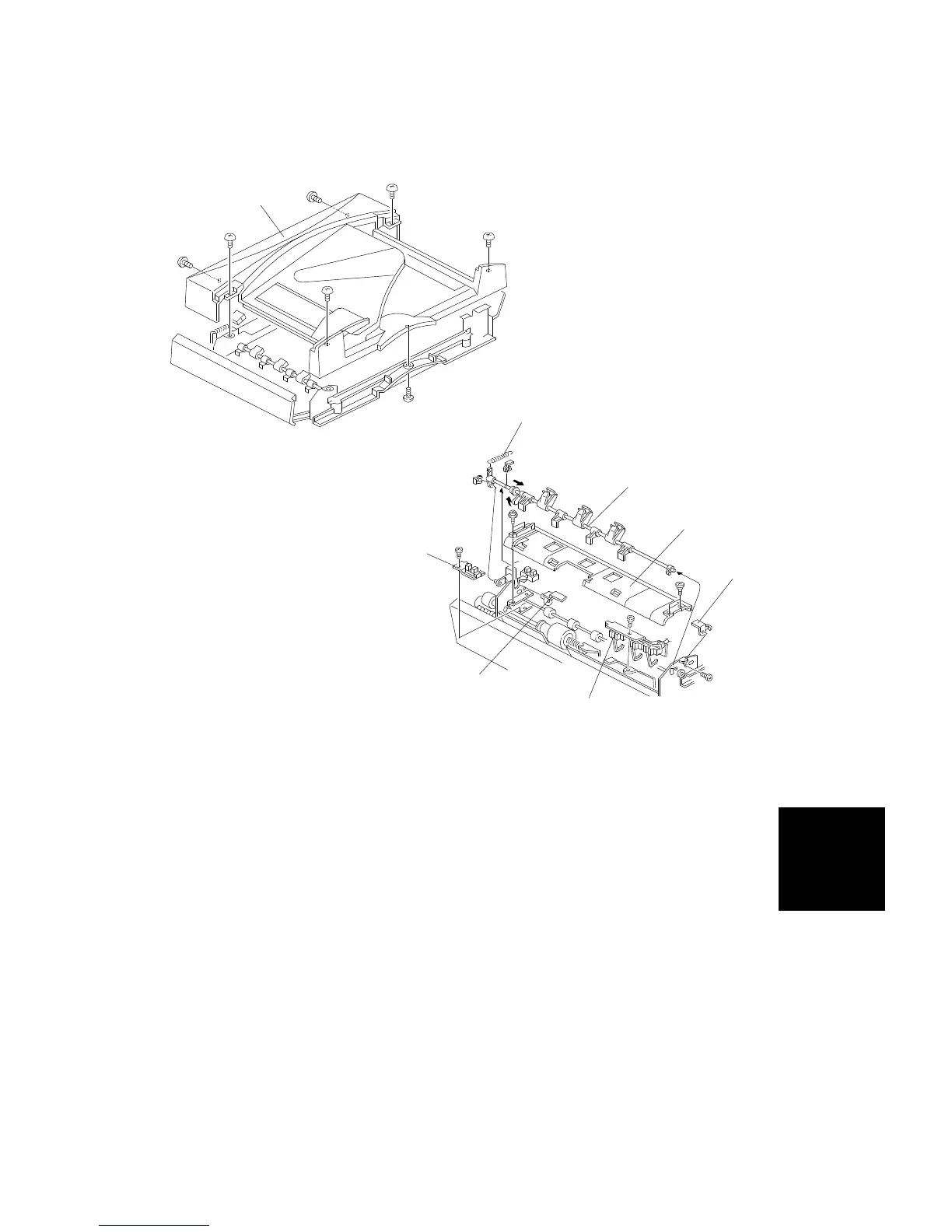

2. Remove the upper cover [A] (7 screws).
3. Remove the pick-up solenoid spring [B].
4. Remove the stopper/pressure lever shaft [C] (2 E-rings).
5. Remove both front [D] and rear [E] feed-in cover magnet catches (1
screw each).
6. Remove the feed-in guide plate [F] (4 screws).
7. Remove the original set sensor assembly [G] (1 screw).
8. Remove the original width sensor assembly [H] (1 screw).
9. Replace the required sensor.
[A]
[B]
[C]
[F]
[D]
[E]
[G]
[H]
ARDF
DF61 (A548)
REPLACEMENT AND ADJUSTMENT
SM 7-21 A166/A187/A189
