8.2 BY-PASS FEED ROLLER, PICK-UP ROLLER, AND
SEPARATION ROLLER REPLACEMENT
1. Remove the by-pass feed table (see procedure 8.1).
2. Open the vertical transport door [A].

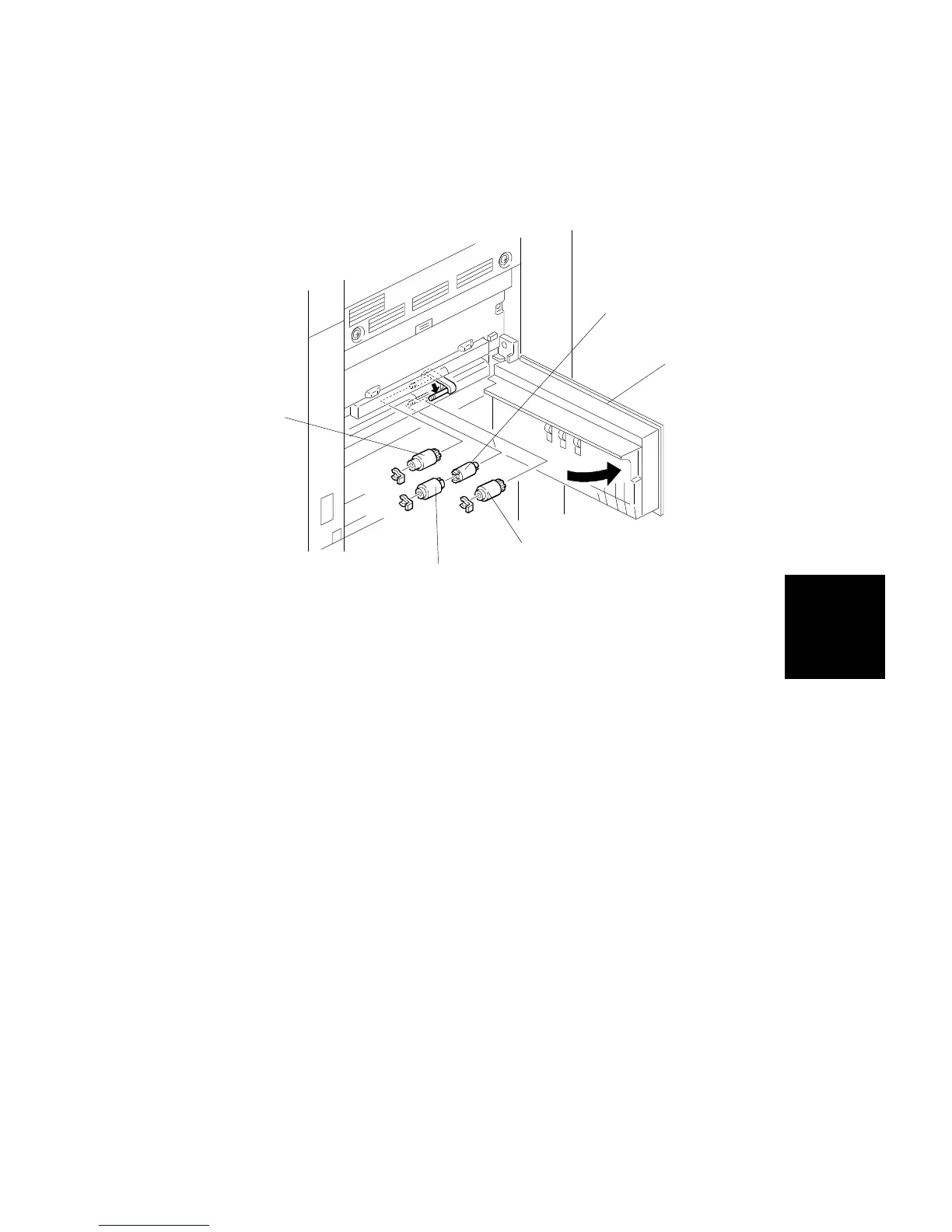

3. Remove the snap-rings from the feed roller [B], separation roller [C] and
pick-up roller [D]. Replace the rollers and the torque limiter [E].
[E]
[B]
[D]
[C]
[A]
Replacement
and
Adjustment
