6.3 REVOLVER MOTOR REPLACEMENT

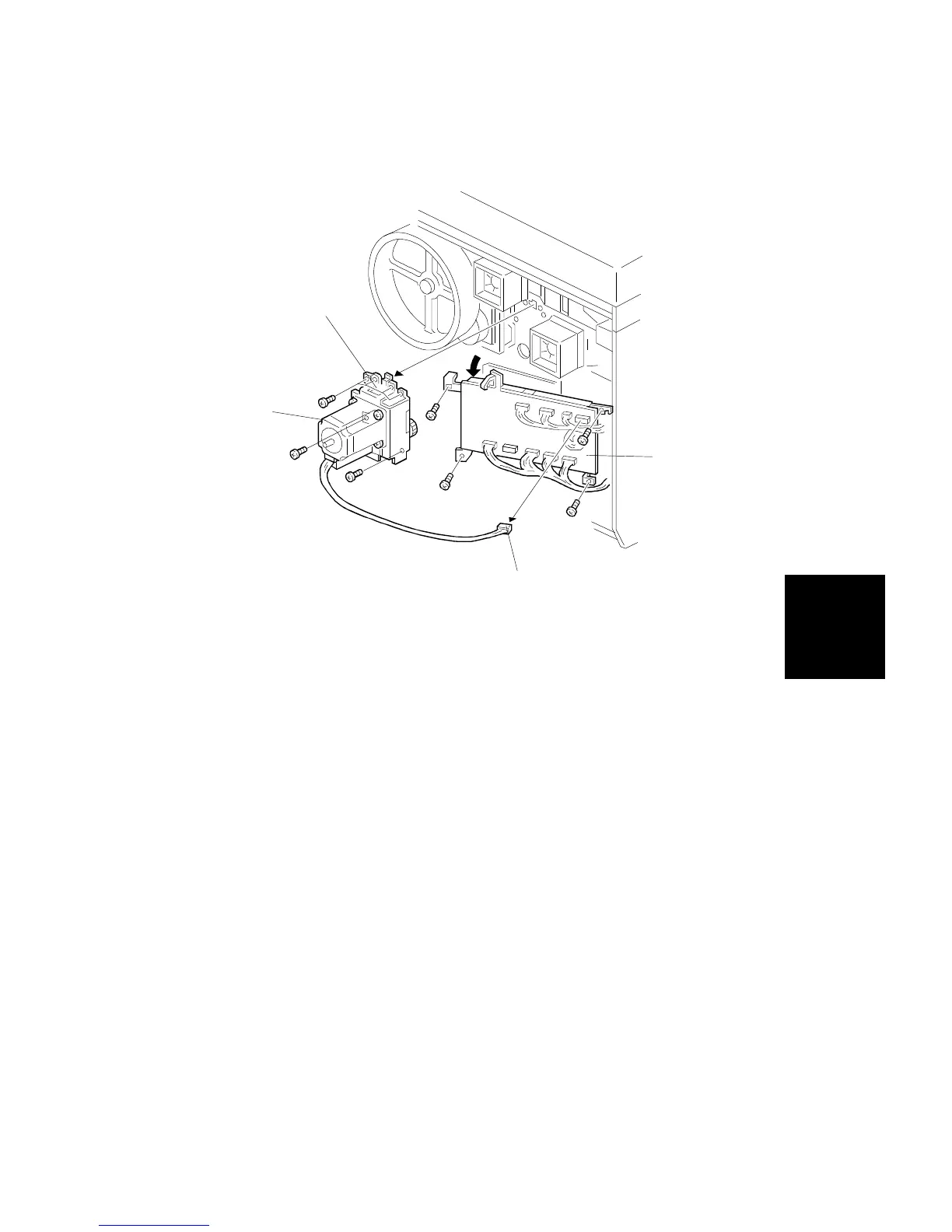

1. Remove the rear cover.
2. Disconnect the connector No. 307 [A] from I/O control board 2 [B].
3. Remove I/O control board 2 [B] (4 screws).
4. Remove developer drive motor bracket with developer motor. (Refer to
Development Motor Replacement Procedure).
4. Remove the revolver motor [C] and the revolver motor bracket [D] as a
unit (6 screws).
NOTE: Do not remove the revolver motor from the revolver motor
bracket.
5. Install a new revolver motor by the reverse procedure of its removal.
