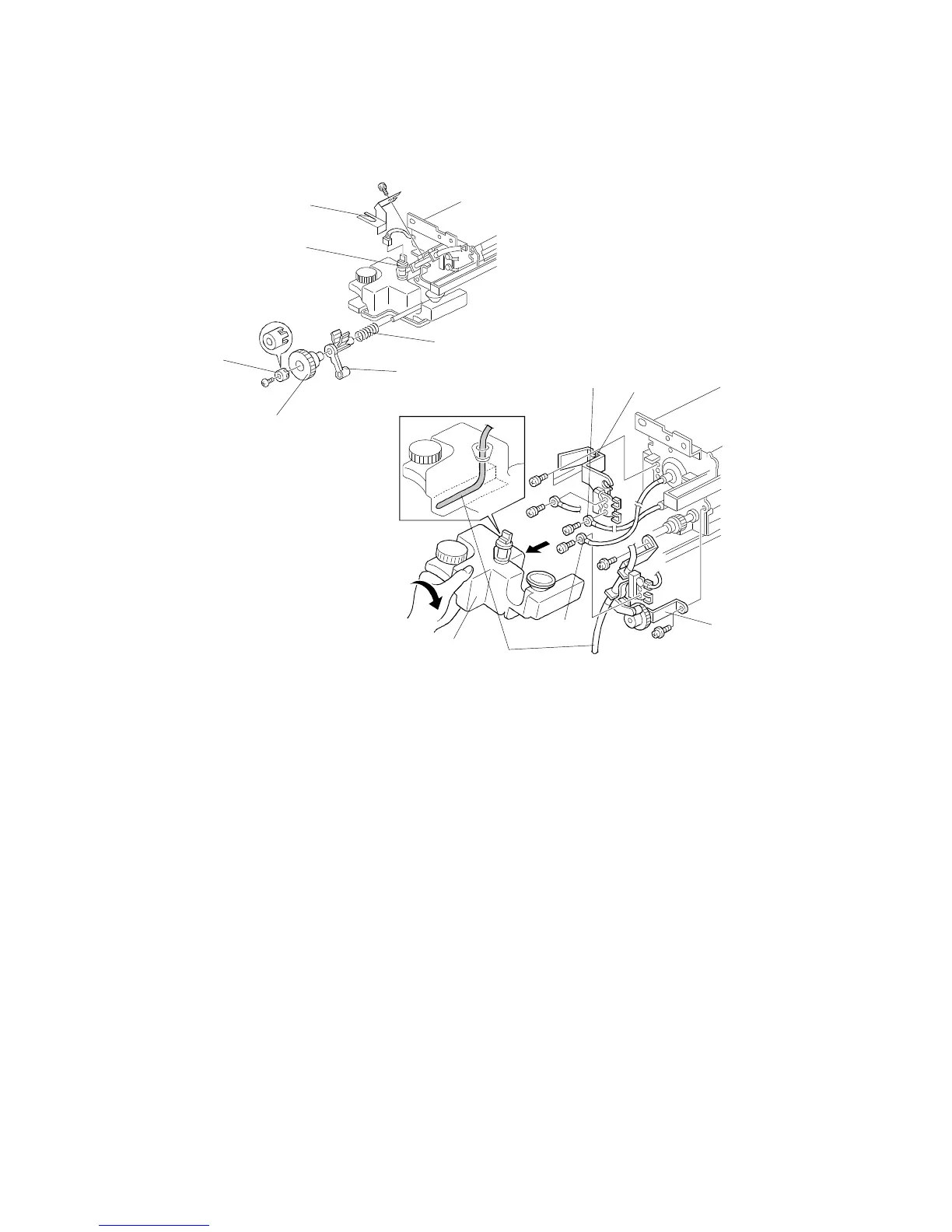

9.5 HOT ROLLER, PRESSURE ROLLER, AND FUSING LAMP
REPLACEMENT
1. Remove the fusing unit (see procedure 9.3.).
2. Remove the fusing unit top cover (see procedure 9.4).
3. Remove the fusing knob hub [A] (1 screw).
4. Remove the fusing knob [B], the release slider [C], and the spring [D].
5. Remove the oil sensor bracket [E] and the oil end sensor [F] (1 screw).
6. Disconnect the oil tube [G] and remove the oil tank [H].
7. Remove the terminal [I] on the front side of the fusing lamp (1 screw).
8. Remove the terminal [J] on the front side of the pressure roller lamp (1
screw).
9. Remove the oil supply unit assembly [K] (2 screws).
10. Remove the front heater bracket [L] (1 screw).
[J]
[K]
[L]
[H]
[G]
[I]
[E]
[F]
[D]
[C]
[A]
[B]
PAPER TRANSPORT AND FUSING
A166/A187/A189 5-76 SM
