6.
DEVELOPMENT UNIT

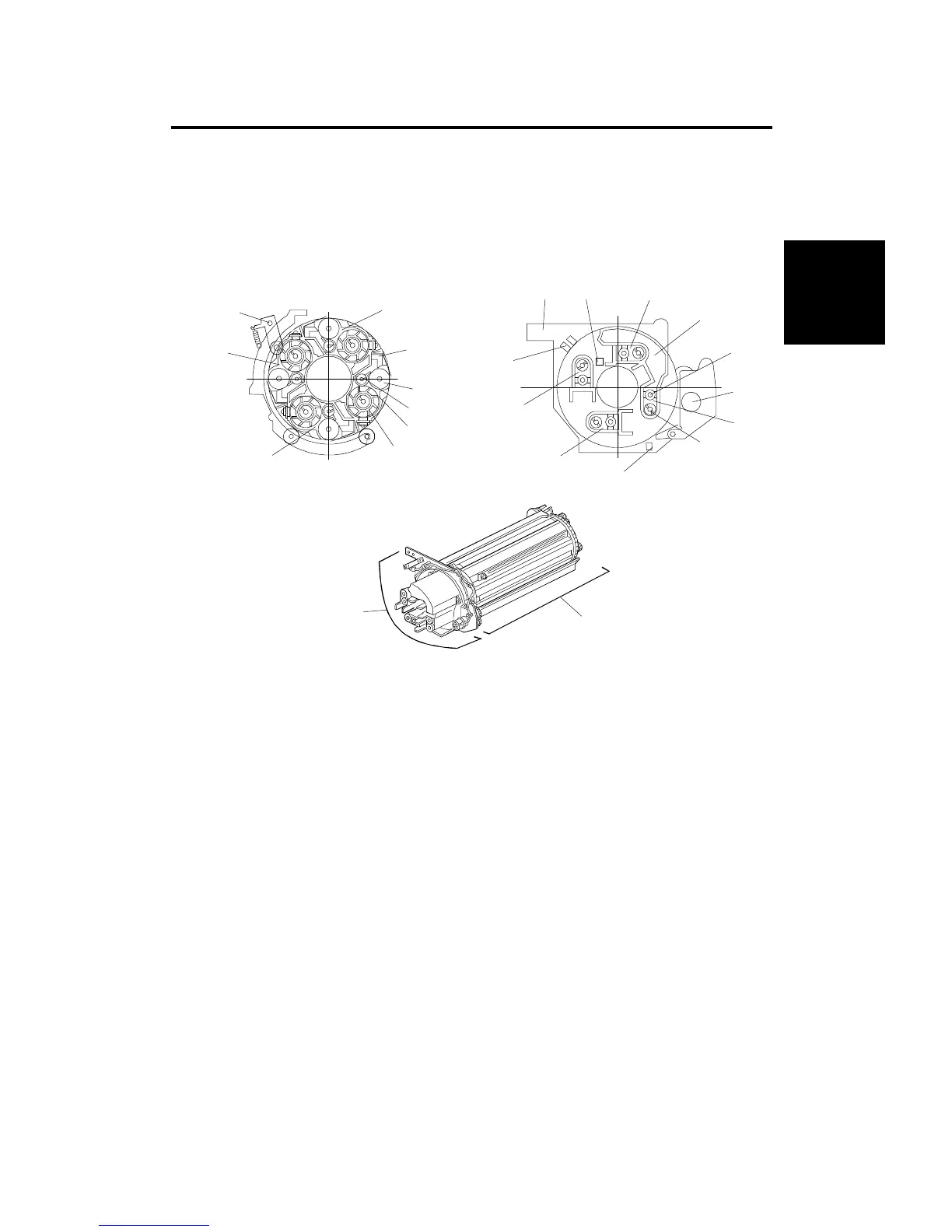

6.1 OVERVIEW
The CMYK development unit is a revolver type, and is composed of the
development and toner supply sections for each color (CMYK).
When this unit rotates counter-clockwise, the toners are developed in the
order Bk, C, M, and Y.
1. Development Roller
2. Transfer Auger
3. Bk Development Section
4. Outer Paddle
5. Cyan Development Section
6. Magenta Development Section
7. Revolver Locker Arm
8. Yellow Development Section
9. Doctor Blade
10. Developer Stay
11. Yellow Toner Supply Section
12. Bk Toner Hopper
13. Toner Supply Roller
14. Toner Supply Motor
15. Bk Toner Supply Section
16. Inner Paddle
17. Color Toner Cartridge Sensor
18. Cyan Toner Supply Section
19. Magenta Toner Supply Section
20. Revolver H.P. Sensor
21. Bk Toner Cartridge Sensor
22. Hopper Section
23. Development Section
24. Development Unit
7
3
6
5
4
2
1
9
8
10
20
19
18
17
16
15
14
13
12
11
21
23
22
24
Detailed
Section
Descriptions
DEVELOPMENT UNIT
SM 2-73 A166/A187/A189
