8.2 PAPER TRAY MECHANISM (A166 COPIER ONLY)
8.2.1 Paper Feed Drive Mechanism

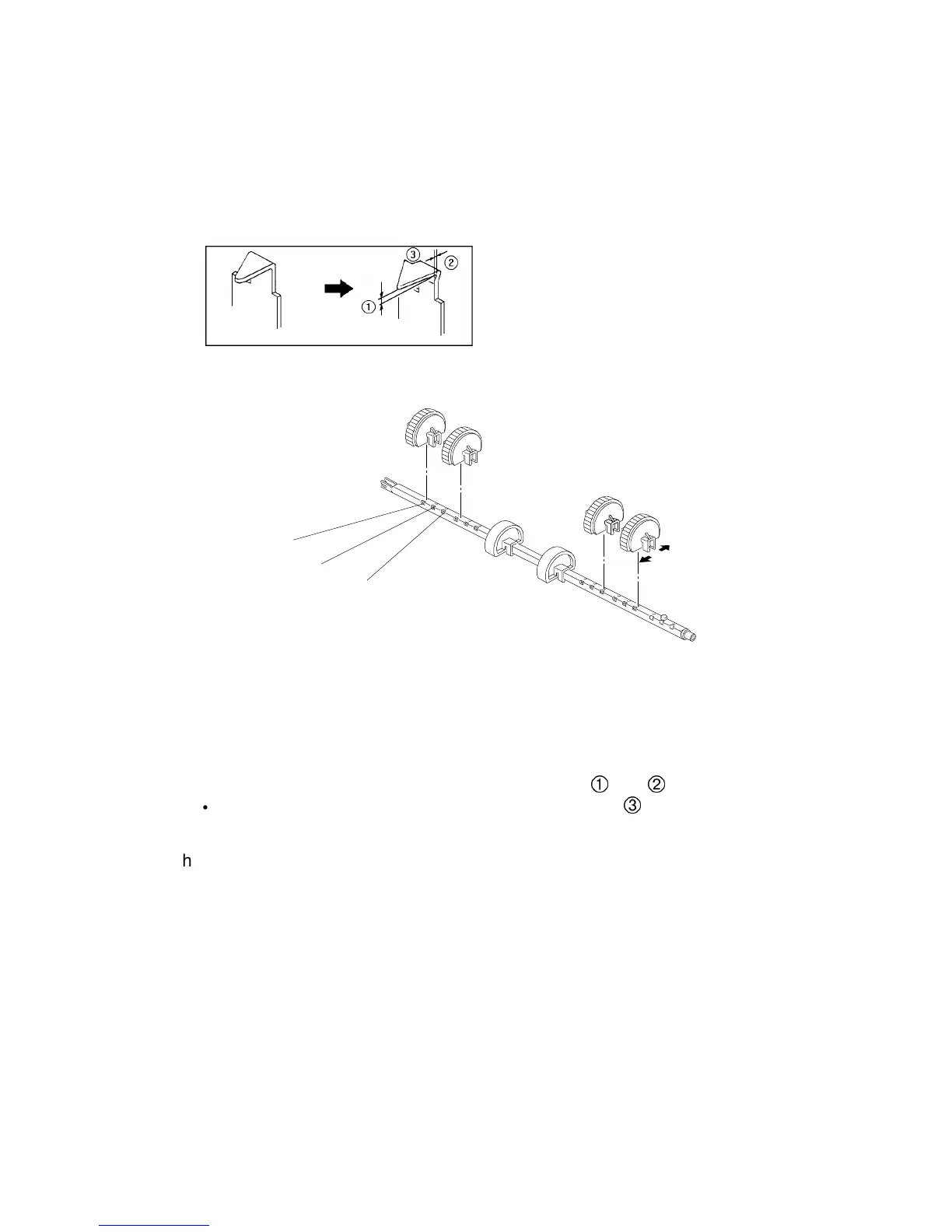

This paper feed mechanism uses the corner separation system. The shape
of the corner separators is as shown above. These corner separators have
the following advantages.
•
Dog ear problems are reduced by the shape at

and

.
•
Multiple paper feeding are reduced by the shape at

.
There are two extra holes for each paper feed roller on the paper feed roller
shaft for use when multiple feed or paper jams occur. The factory-set
position of the paper feed roller is hole [C], which is most suitable for A4, LT
and B size paper. Another [B] is especially suitable for B size paper. The
other, [A], is a general position for A size. If paper jams or non-feed errors
occur for users who mainly use B size paper, change the paper feed roller
position to [B].
[A]
[C]
[B]
