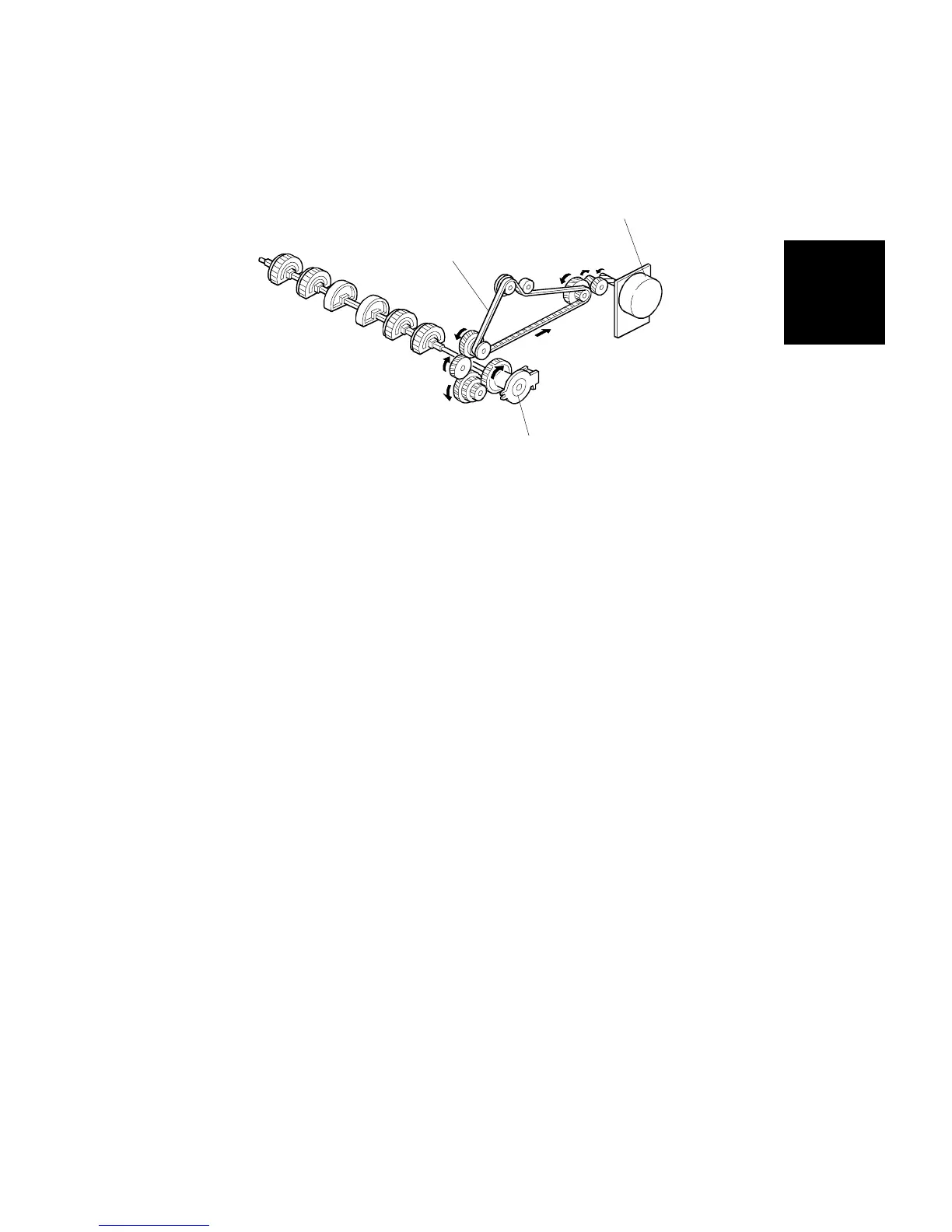

The main motor [A] drives the paper feed rollers through the relay clutch
gears, the timing belt [B], and the paper feed clutch [C].
After the Start key is pressed, the paper feed clutch turns on and the paper
feed rollers start rotating to feed the paper. The paper feed clutch stays on
for 150 ms to turn the paper feed rollers once only (the paper feed clutch is a
one-turn clutch).
[B]
[C]
[A]
Detailed
Section
Descriptions
PAPER FEED AND REGISTRATION
SM 2-113 A166/A187/A189
