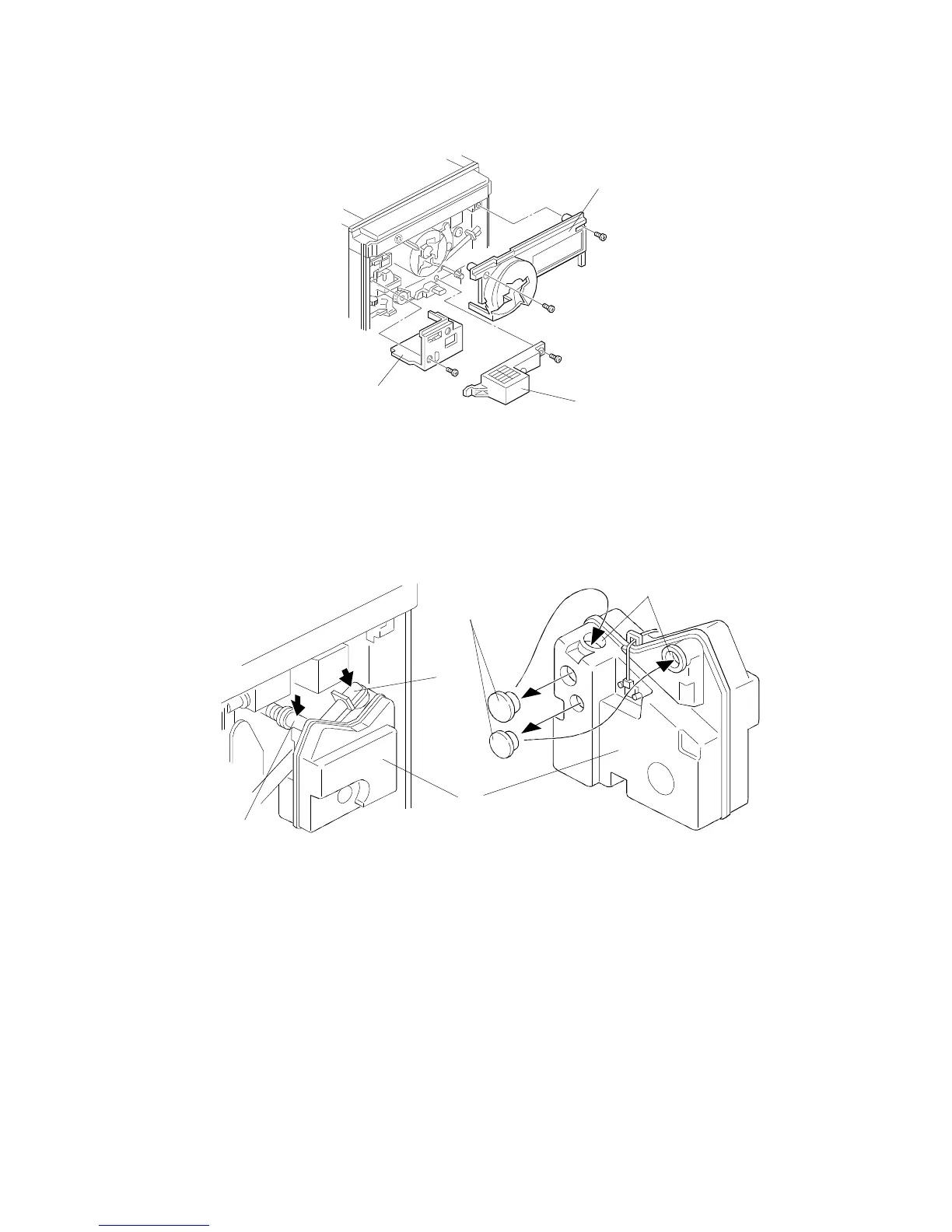

1.9 INNER COVERS
1. While lifting up the hook, remove the inner cover [A] (2 screws, 1 hook).
2. Remove the counter cover [B] (2 screws).
3. Remove the inlet fan cover [C] (1 screw).
1.10 USED TONER TANK
1. Tap the toner collection duct joints [D] and [E] once or twice. This
prevents toner from scattering when removing the used toner tank.
2. Remove the used toner tank [F] (1 connector and 1 clamp), while turning
upwards the duct [D] to prevent toner from scattering.
3. After removing the used toner tank, seal the toner inlet holes [G] with the
used toner caps [H].
[D]
[E]
[F]
[G]
[H]
[A]
[B]
[C]
