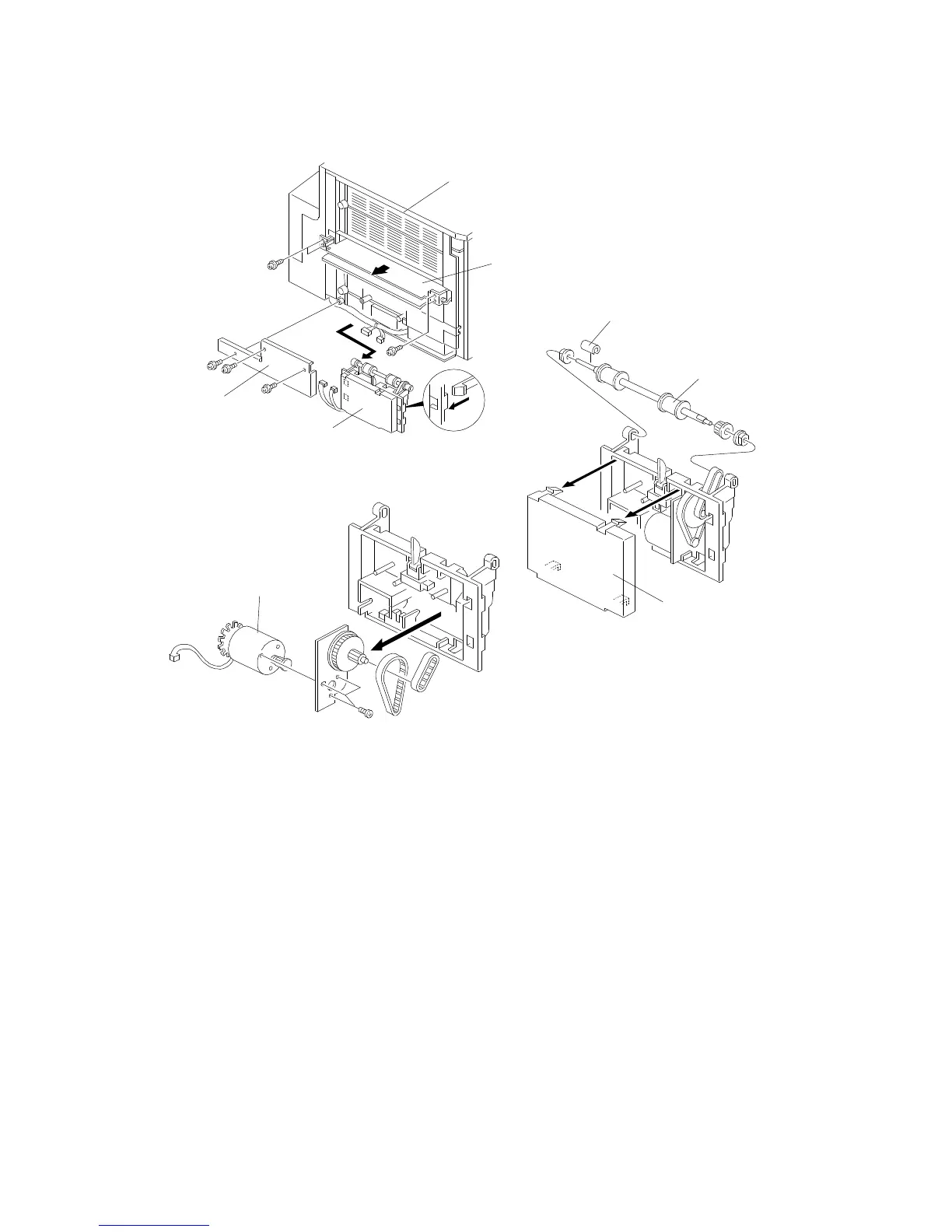

5.5 TRANSPORT MOTOR REPLACEMENT
1. Remove the sorter stapler [A] (1 screw, 1 chain).
2. Remove the lower plate [B] (3 screws).
3. Remove the entrance guide [C] (4 screws).
4. Remove the transport motor unit [D].
5. Remove the collar [E].
6. Remove the transport roller [F] (2 bushings, 1 gear).
7. Remove the transport motor cover [G].
8. Remove the transport motor [H] (3 screws).
