9.12 FUSING ENTRANCE GUIDE ADJUSTMENT
•
The height of the fusing entrance can be adjusted to correct for wrinkling
on special paper types or jams when using postcards.
1. Remove the screws from the standard positions (as set at the factory).

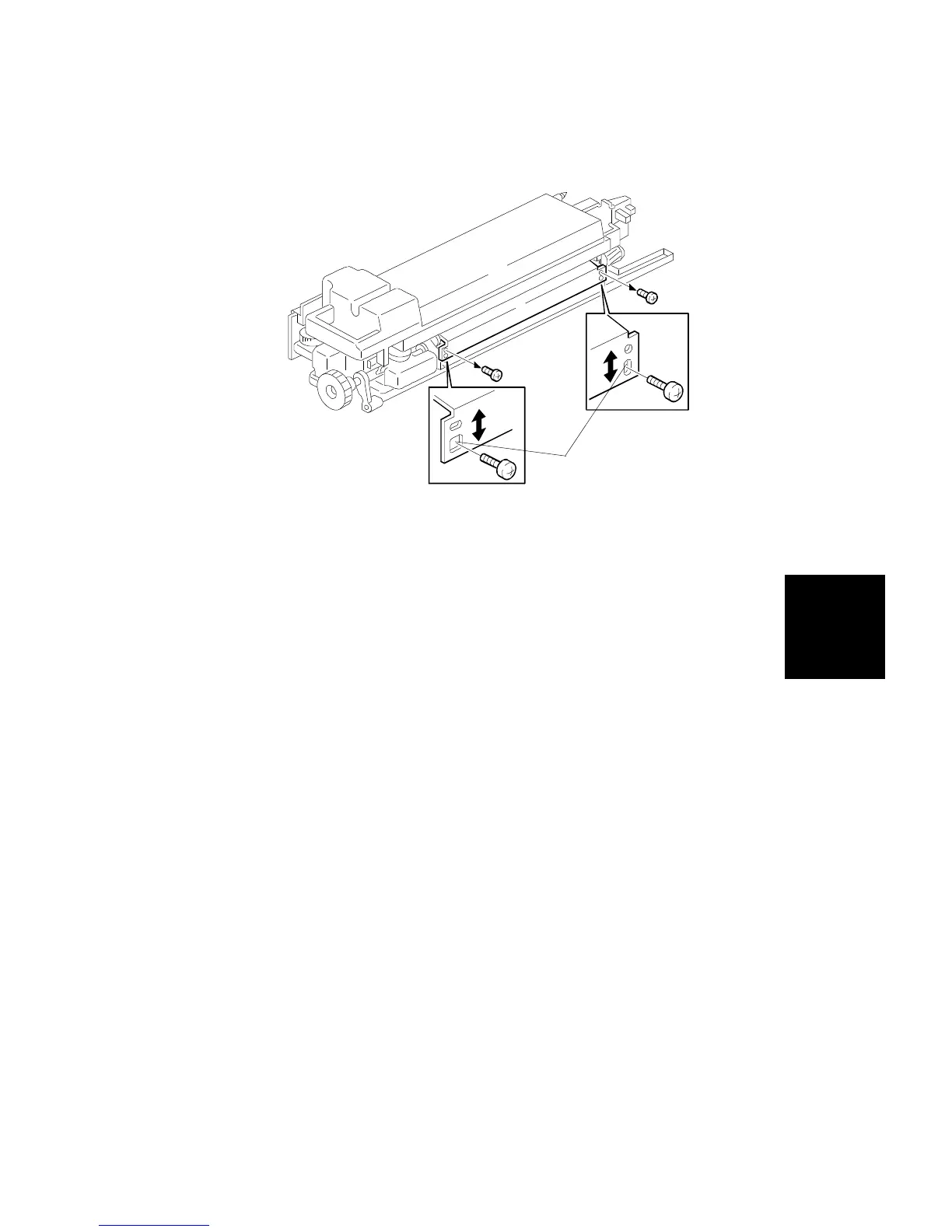

2. Mount the screws in the service holes [A] in a position which will correct
the particular problem.
•
When a special paper type wrinkles, set the screws to a higher
position in the service holes.
•
When a postcard jam occurs, set the screws to a lower position.
[A]
Replacement
and
Adjustment
PAPER TRANSPORT AND FUSING
SM 5-85 A166/A187/A189
