8.10 VERTICAL TRANSPORT SWITCH AND SENSOR
REPLACEMENT

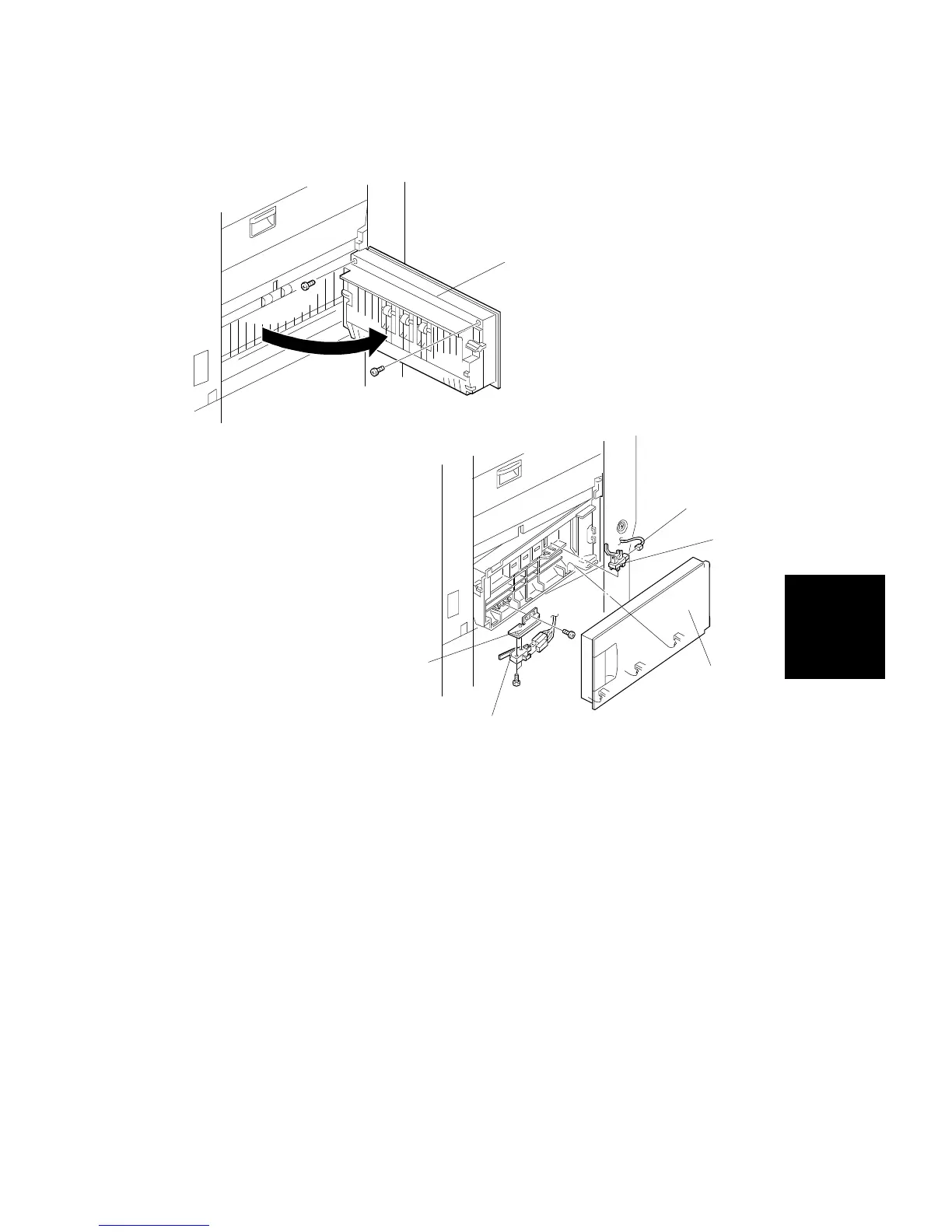

1. Open the vertical transport door [A].
2. Remove the vertical transport cover [B] (2 screws).
3. Replace the vertical transport sensor [C] (1 connector [D]).
4. Remove the vertical transport switch bracket [E] (1 screw).
5. Replace the vertical transport switch [F] (1 connector and 2 screws).
[A]
[E]
[F]
[D]
[C]
[B]
