Ricoh A66 - Scanner Home Position Sensor Replacement

3.6 SCANNER HOME POSITION SENSOR REPLACEMENT

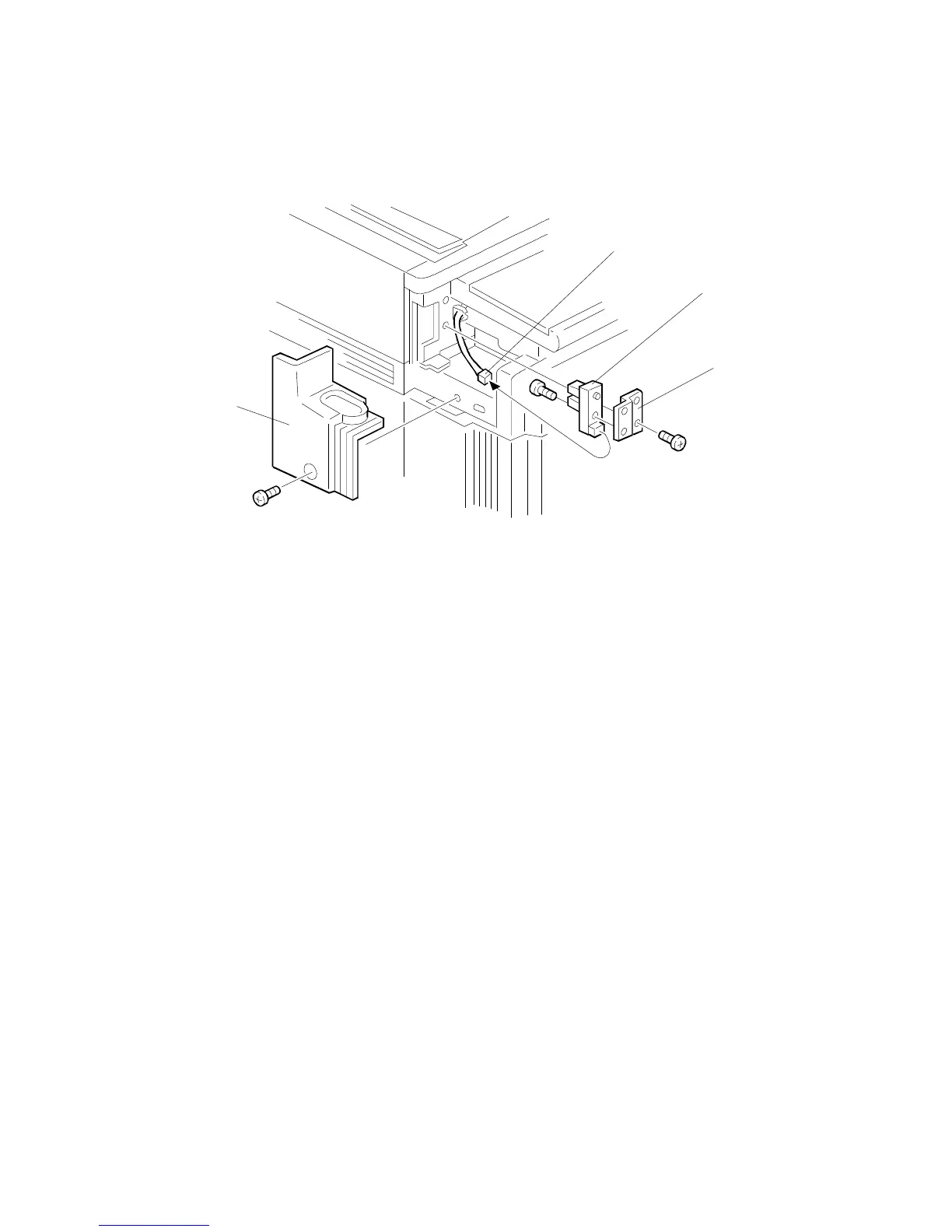

1. Remove the left upper bracket [A] on the left of the operation panel (1
screw).
2. Disconnect the HP sensor connector [B].
3. Remove the HP sensor bracket [C] (1 screw).
4. Remove and replace the HP sensor [D] (1 screw).
[A]
[B]
[C]
[D]
SCANNER UNIT
A166/A187/A189 5-18 SM
