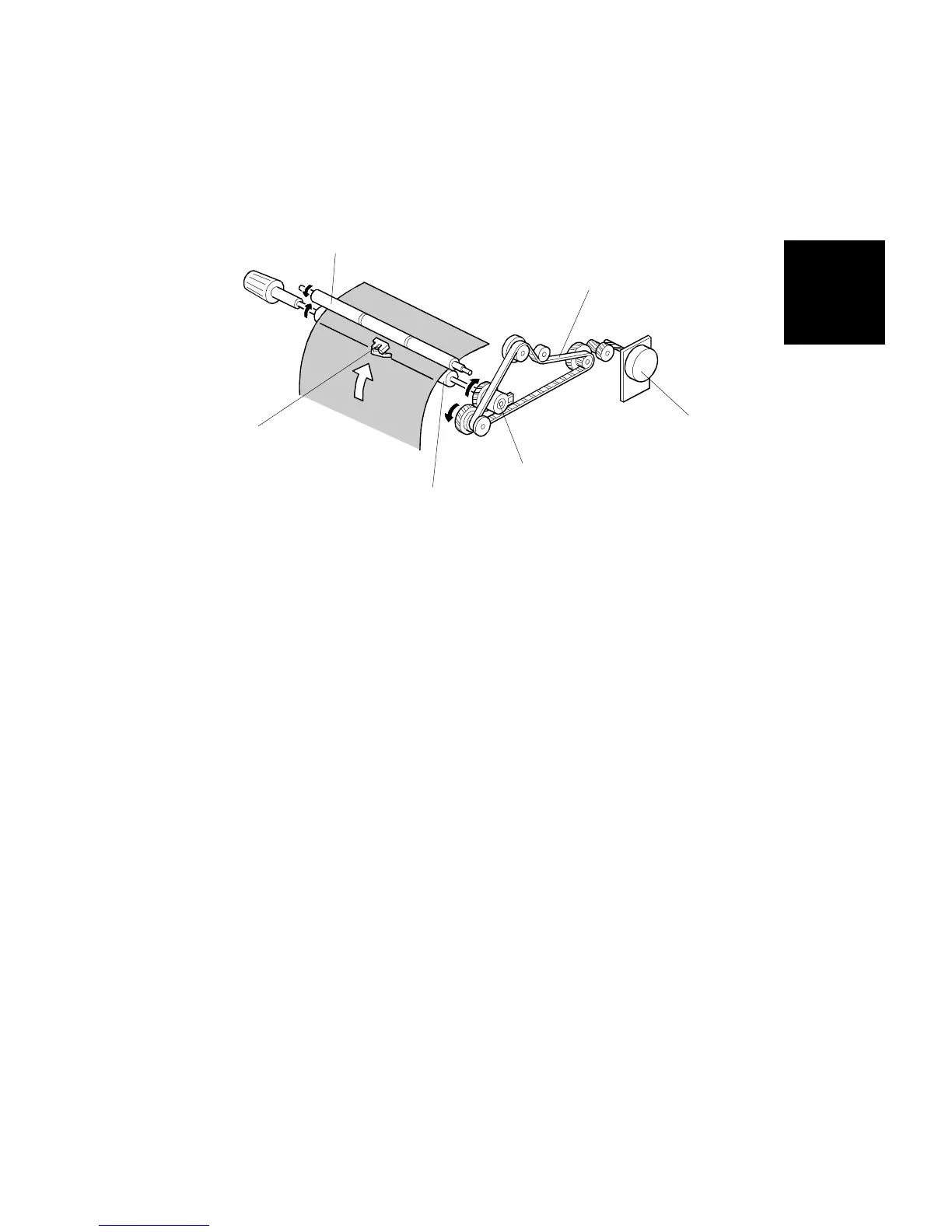

8.4 REGISTRATION DRIVE MECHANISM
Through the timing belt [A], rotation from the main motor [B] is transmitted to
the registration clutch [C]. When the registration clutch activates, the main
motor drive is transmitted to the lower registration roller [D], then to the upper
registration roller [E].
The Registration sensor [F], which is located just in front of the two
registration rollers, is used for paper feed timing and misfeed detection.
[D]
[E]
[A]
[B]
[C]
[F]
Detailed
Section
Descriptions
PAPER FEED AND REGISTRATION
SM 2-123 A166/A187/A189
