DUPLEX UNIT
10.1 OVERVIEW
NOTE: A187/A189 only

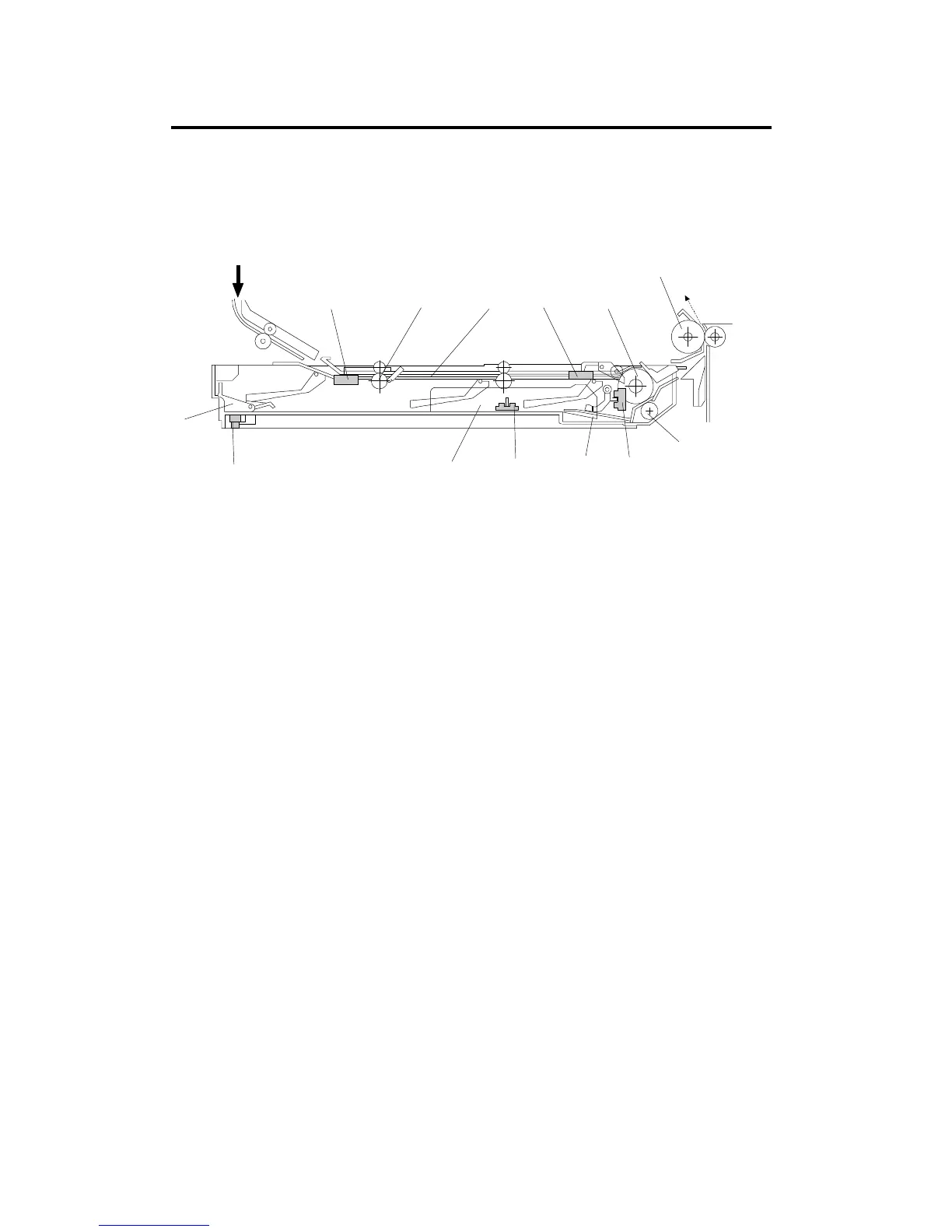

1. End Fence
2. End Fence Jogger H.P. Sensor
3. Side Fence Jogger
4. Side Fence Jogger H.P. Sensor
5. Bottom Plate
6. Paper End Sensor
7. Separation Roller
8. Vertical Transport Roller
9. Paper Feed Roller
10. Duplex Turn Sensor
11. Transport Path
12. Duplex Entrance Roller
13. Duplex Entrance Sensor
8
1
2
34
5
6
13
12 11
10
9
7
From the Fusing Unit
To the
Registration
Rollers
DUPLEX UNIT
