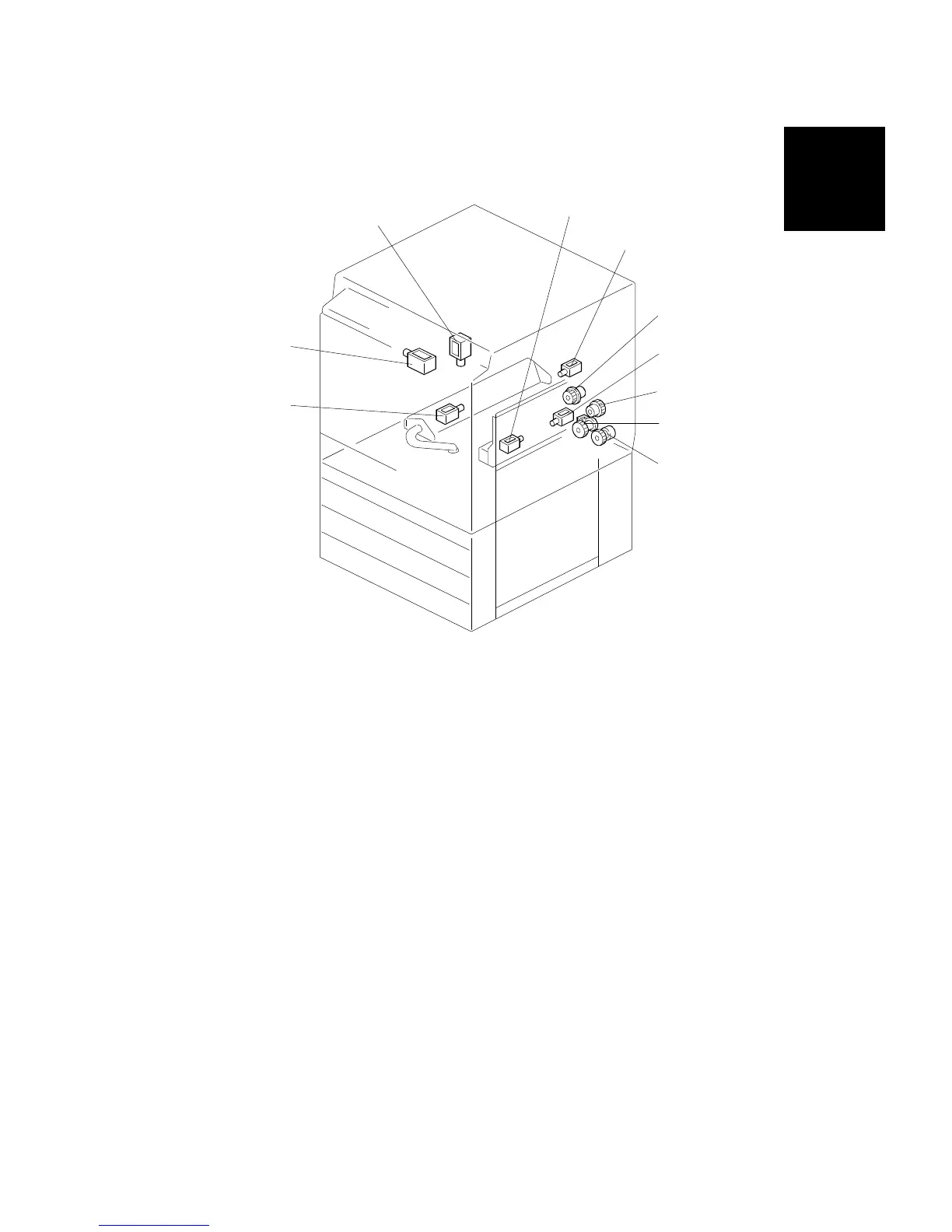

4.4 SOLENOIDS AND CLUTCHES
10
9
8
7
6
5
4
1
2
3
1. Transfer Belt Cleaning SOL
2. Toner Supply Release SOL
3. Junction Gate SOL
(A187/A189 only)
4. Sub By-pass Feed Pick-up
SOL
5. Transfer Belt Lubricant SOL
6. Registration CL
7. Main By-pass Feed Pick-up
SOL
8. By-pass Feed CL
9. Paper Feed CL
(A166 only)
10. Vertical Transport CL
Overall
Machine
Information
PARTS LAYOUT
SM 1-19 A166/A187/A189
