9.2 TRANSPORT BELT REMOVAL

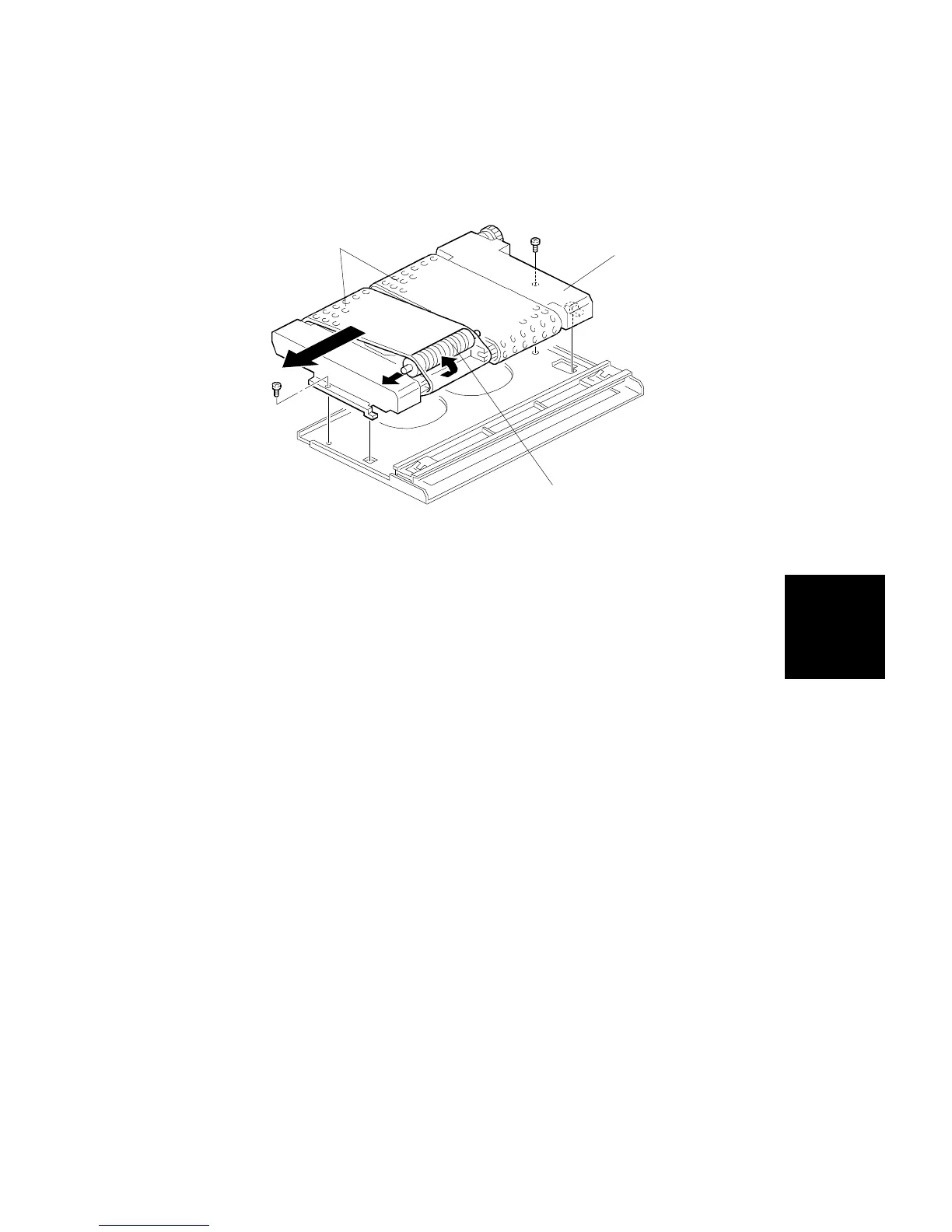

1. Remove the transport unit (see procedure 9.1).
2. Remove the transport assembly [A] (2 screws).
3. Remove the transport belt roller [B].
4. Replace the transport belt [C].
[C]
[A]
[B]
Replacement
and
Adjustment
PAPER TRANSPORT AND FUSING
SM 5-73 A166/A187/A189
