9.8 PRESSURE ROLLER THERMISTOR REPLACEMENT

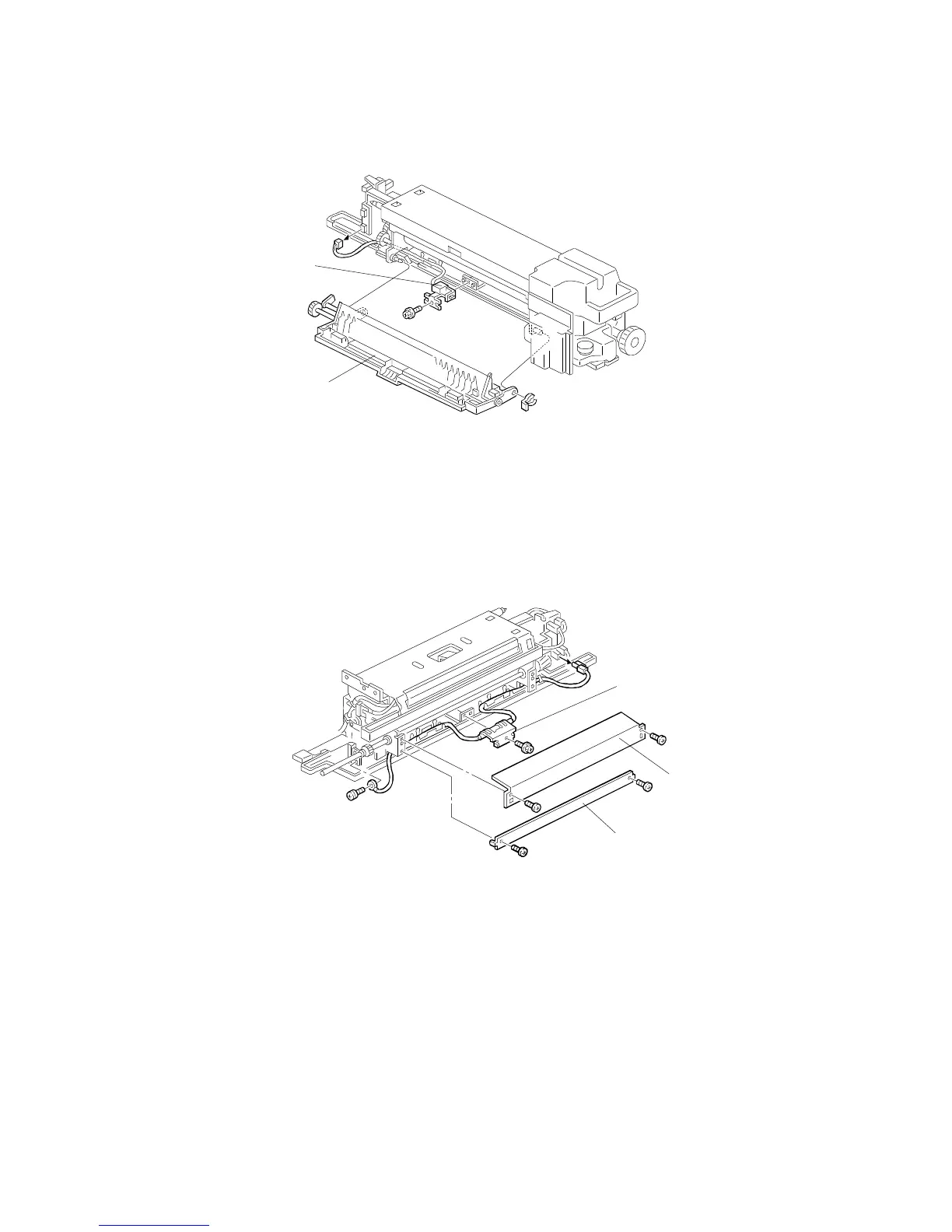

1. Remove the fusing unit (see procedure 9.3).
2. Remove the paper exit door [A] (1 snap-ring).
3. Replace the pressure roller thermistor [B] (1 connector and 1 screw).
9.9 PRESSURE ROLLER THERMOFUSE REPLACEMENT
1. Remove the oil tank (see procedure 9.4).
2. Remove the fusing entrance guide plate [A] (2 screws).
3. Remove the heat shield [B] (2 screws).
4. Remove the pressure roller thermofuse [C] (1 connector and 2 screws)
and install a new thermofuse.
Rev. 11/96
[B]
[A]
[C]
[A]
[B]
PAPER TRANSPORT AND FUSING
A166/A187/A189 5-82 SM
