7.4 FEED ROLLER, PICK-UP ROLLER, AND REVERSE
ROLLER REPLACEMENT

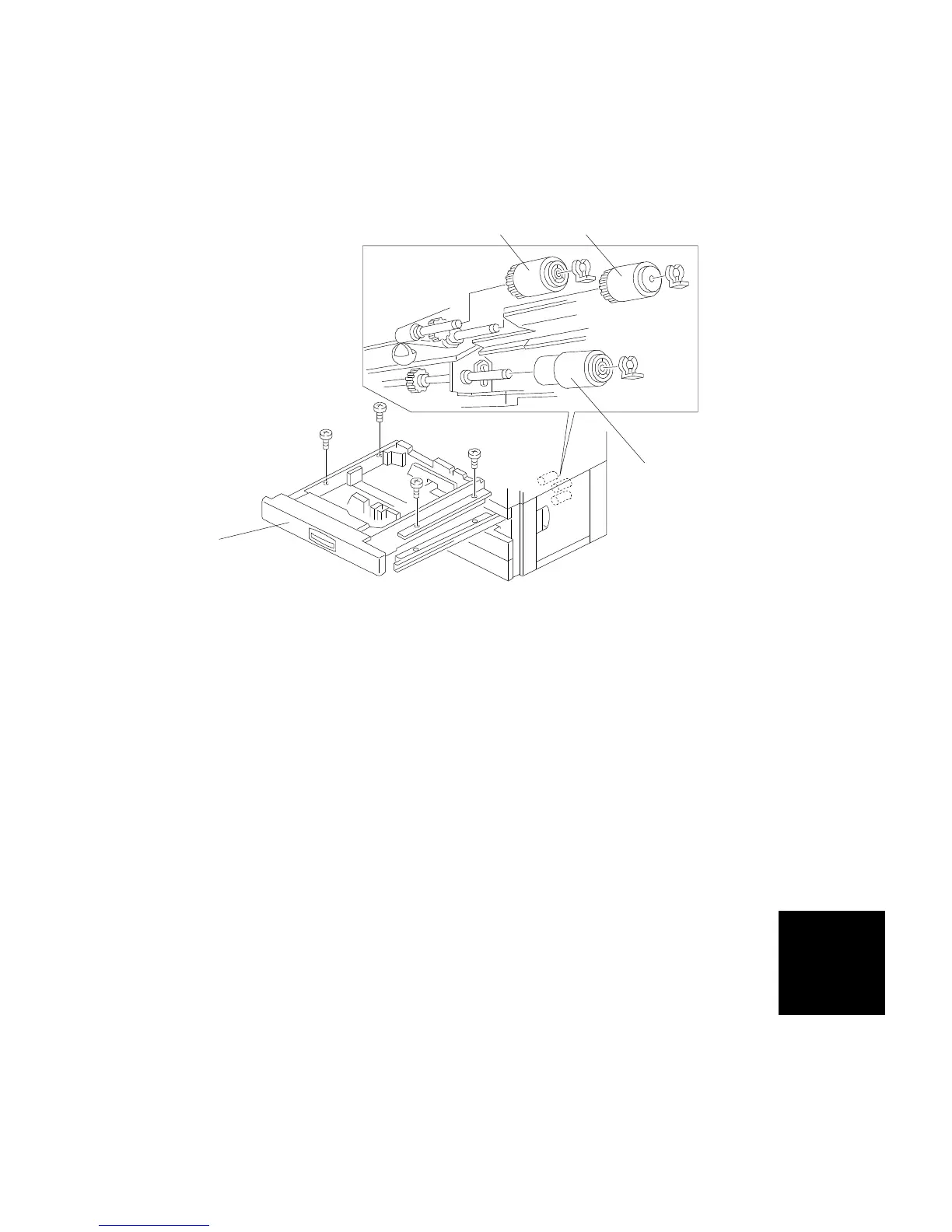

1. Remove the paper feed tray [A] (4 screws).
2. Remove the feed roller [B], pick-up roller [C], and reverse roller [D] (1 clip
each).
NOTE: After reinstalling the paper tray, perform the side-to-side registration
adjustment (see Removal and Adjustment in the manual for the
copier).
[C]
[B]
[D]
[A]
PAPER TRAY
UNIT
PS290/PS280
(A549/A550
REPLACEMENT AND ADJUSTMENT
SM 8-13 A166/A187/A189
