8.3.4 By-pass Feed Paper Width Detection

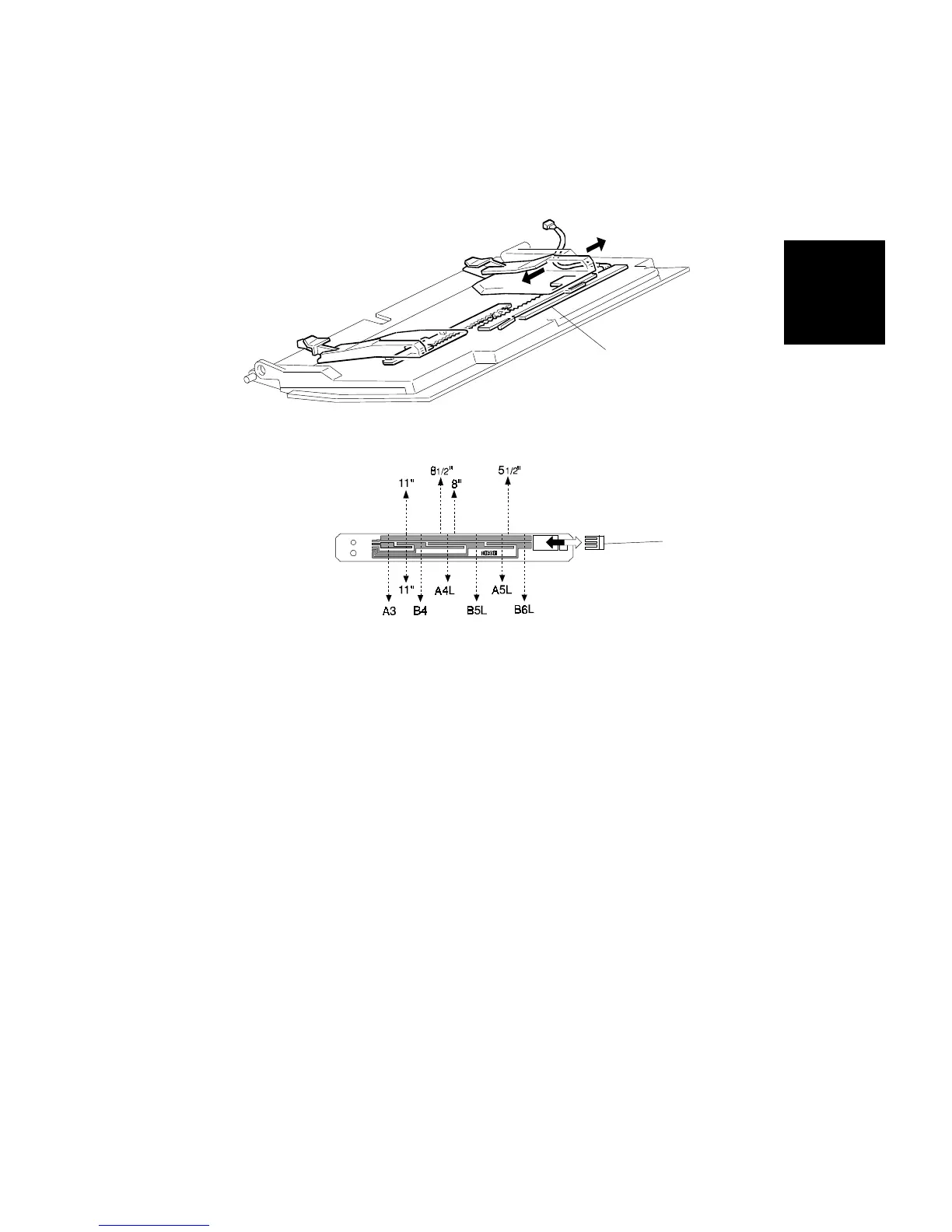

The by-pass paper width detection board [A] monitors the paper width. The
rear side fence is connected to the terminal plate [B]. When the side fences
are positioned to match the paper width, the terminal plate slides along the
wiring patterns on the detection board. The patterns for each paper width on
the paper width detection board are unique. Therefore, the machine
determines which paper width has been placed in the by-pass feed table by
the signal output from the board.
This machine does not have a paper length sensor, so the paper length is
selected by user operation when the by-pass feed table is opened. (The user
also selects the lengthwise/sideways orientation.) The default of the
orientation is defined by SP 5-19-15.
The user also can select a non-standard paper size which was previously set
with a user tool (default: 432 x 297 mm).
[A]
[B]
LT version
A4 version
Detailed
Section
Descriptions
PAPER FEED AND REGISTRATION
SM 2-121 A166/A187/A189
