Ricoh A66 - Oil Pan Pads

9.11 OIL PAN PADS
1. Remove the hot roller, the pressure roller, and the pressure roller
cleaning blade assembly. (see procedure 9.5.)

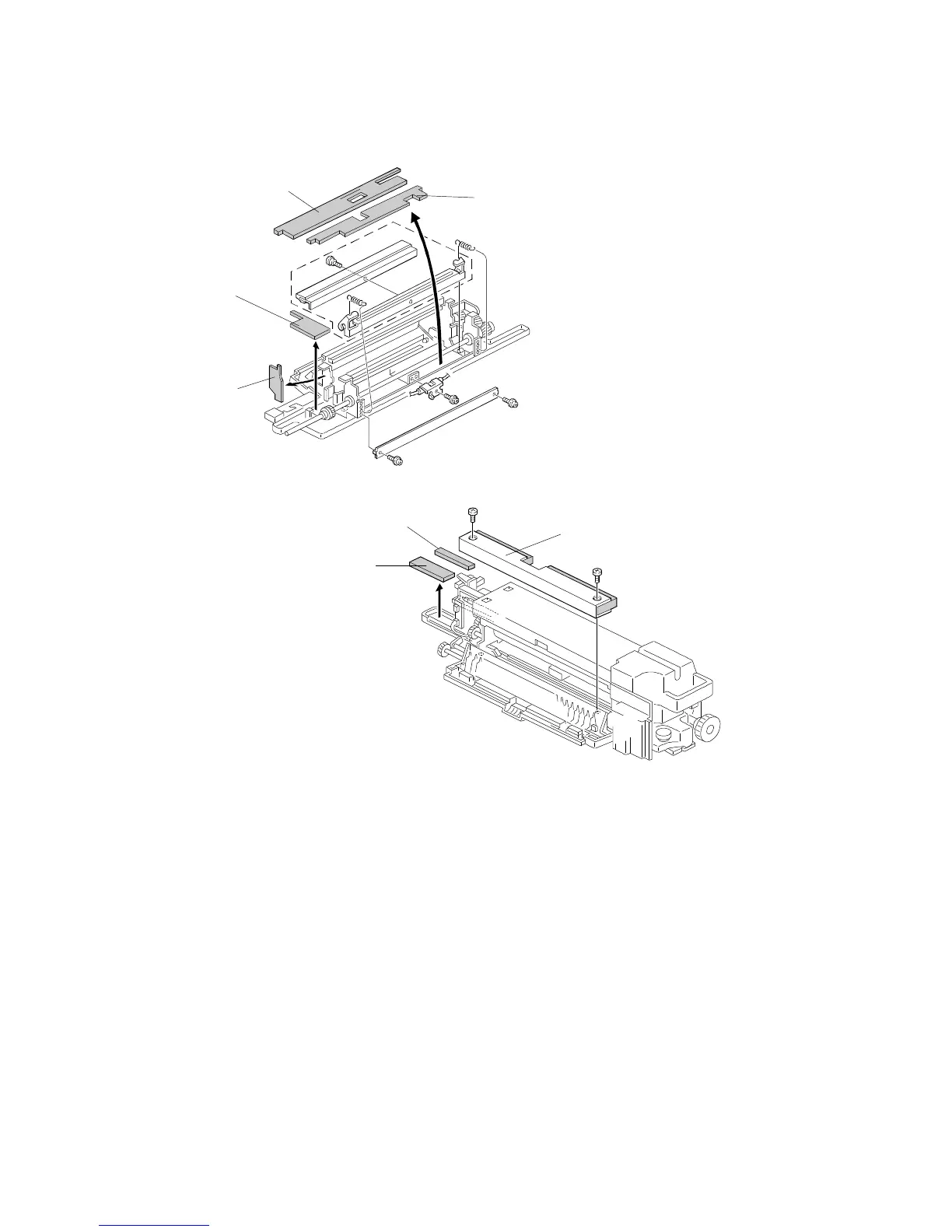

2. Replace the following oil pan pads.
•
Right oil pan pad [A]
•
Left oil pan pad [B]
•
Bottom front oil pan pad [C]
•
Front oil pan pad [D]
•
Rear right oil pan pad [E]
•
Rear left oil pan pad [F]
•
it door oil pan pad assembly [G]
[D]
[C]
[B]
[A]
[G]
[E]
[F]
