8. PAPER FEED AND REGISTRATION
8.1 BY-PASS FEED TABLE REMOVAL

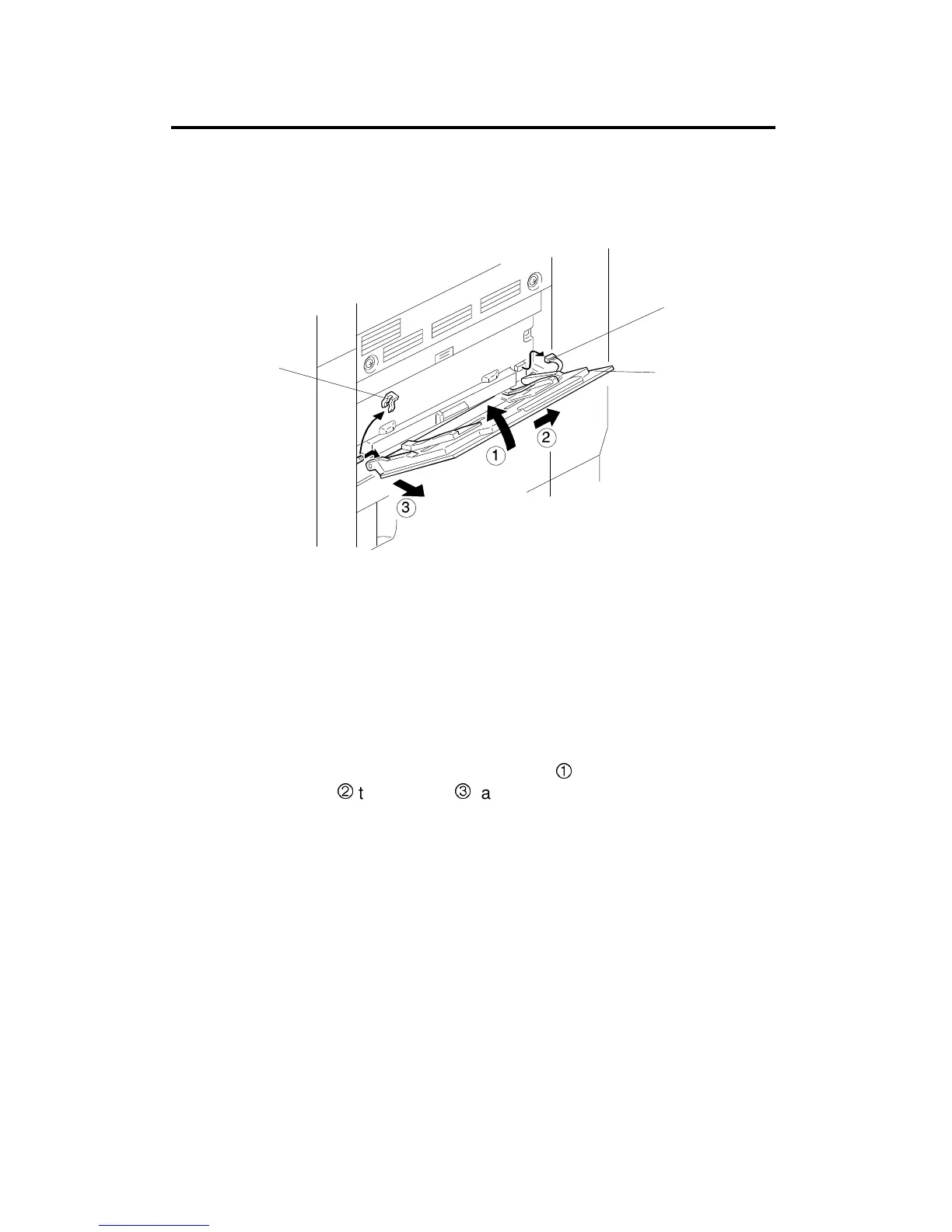

1. Open the by-pass feed table [A].
2. Disconnect the connector [B].
3. Remove the snap ring [C].
4. Raise the by-pass feed table almost vertically
and push it toward the
rear of the copier
to remove it
, as shown.
[A]
[B]
[C]
PAPER FEED AND REGISTRATION
A166/A187/A189 5-60 SM
