(5) When there is a Toner End Condition
When the machine detects a toner end condition, the machine positions the
empty color cartridge to the replacement position and stops the job.
After the toner cartridge is replaced and the front cover is closed, the
machine performs the revolver H.P. process.
Only for Bk toner:
After the revolver H.P. process, the revolver rotates 10 times to supply the
Bk toner in the cartridge to the hopper section. While the revolver rotates, it
stops for 2 seconds at 180 degrees and 270 degrees from the revolver H.P.
position to supply more toner to the hopper section.
After the revolver H.P. process for color or the black toner process as
detailed above is completed, the machine sends the development section
containing the new toner cartridge to the position for development, then
performs the toner recovery procedure. (See section 2-1, Process Control.)

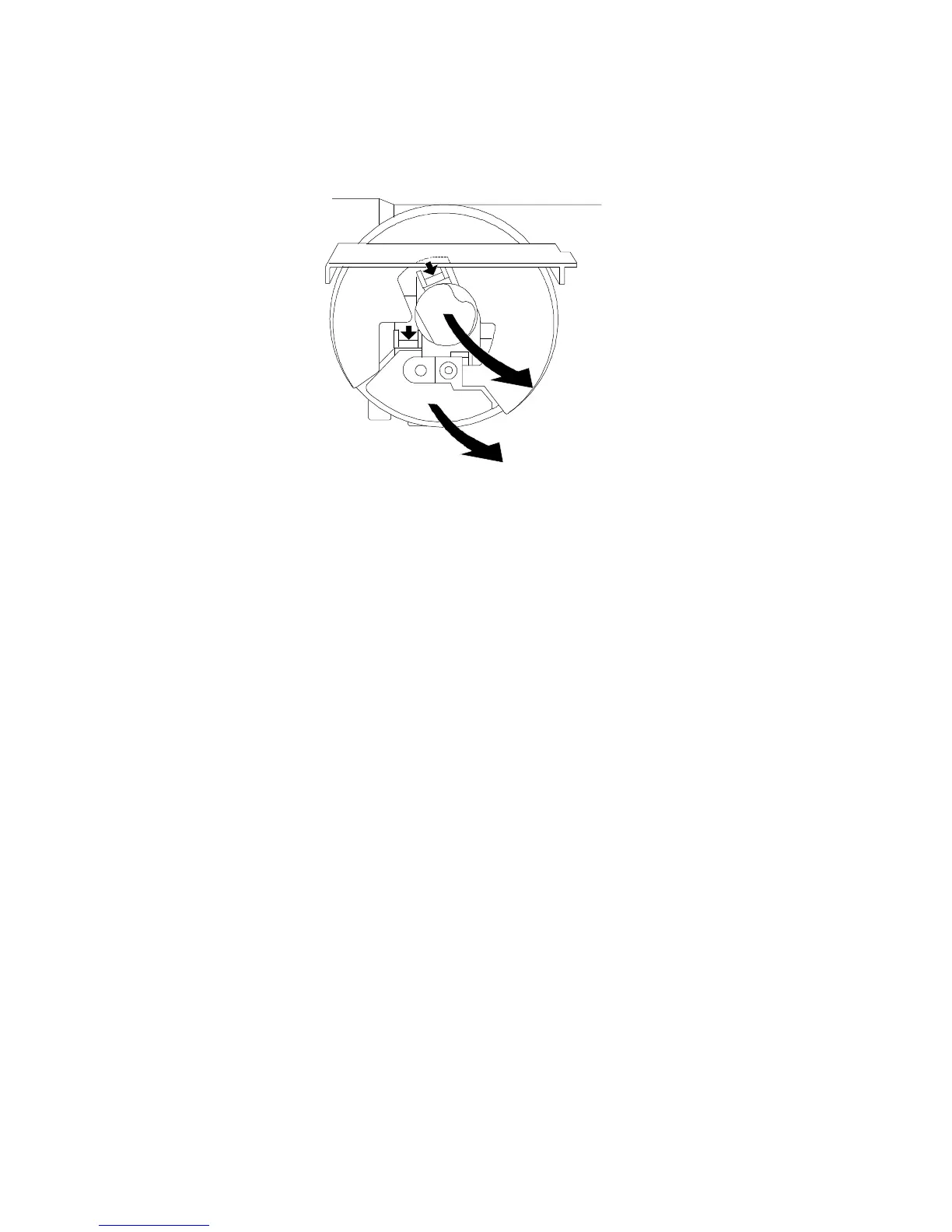

Bk toner and yellow toner replacement position
Rev. 1/97
DEVELOPMENT UNIT
A166/A187/A189 2-92 SM
