5. Reinstall the following outer covers:
(1) Upper right cover
(2) Upper rear cover

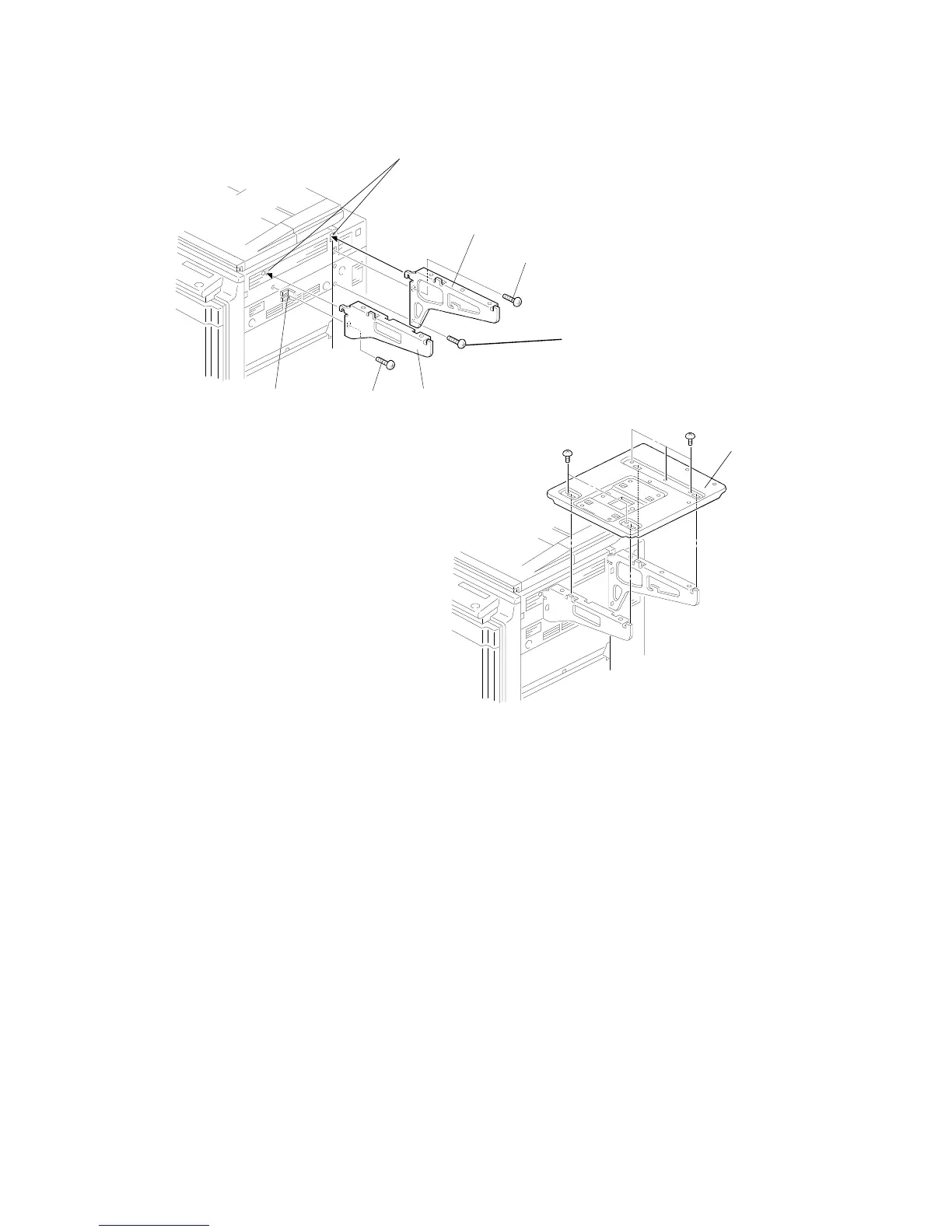

6. Mount the two cantilevers [F] and [G] into the openings [I].
7. Fasten the cantilever [F] ([J]: 1 M4 x 13 screw and 1 spacer [G]).
8. Fasten the cantilever [H] ([J]: M4 x 13 screw, [K]: M4 x 8 screw).
9. Place the table [L] on the cantilevers. Then fasten it with five M4 x 8
screws.
Rev. 11/96
⇒
[G]
[F]
[I]
[H]
[J]
[J]
[K]
[L]
FILM PROJECTOR TABLE (A579) INSTALLATION
A166/A187/A189 3-52 SM
