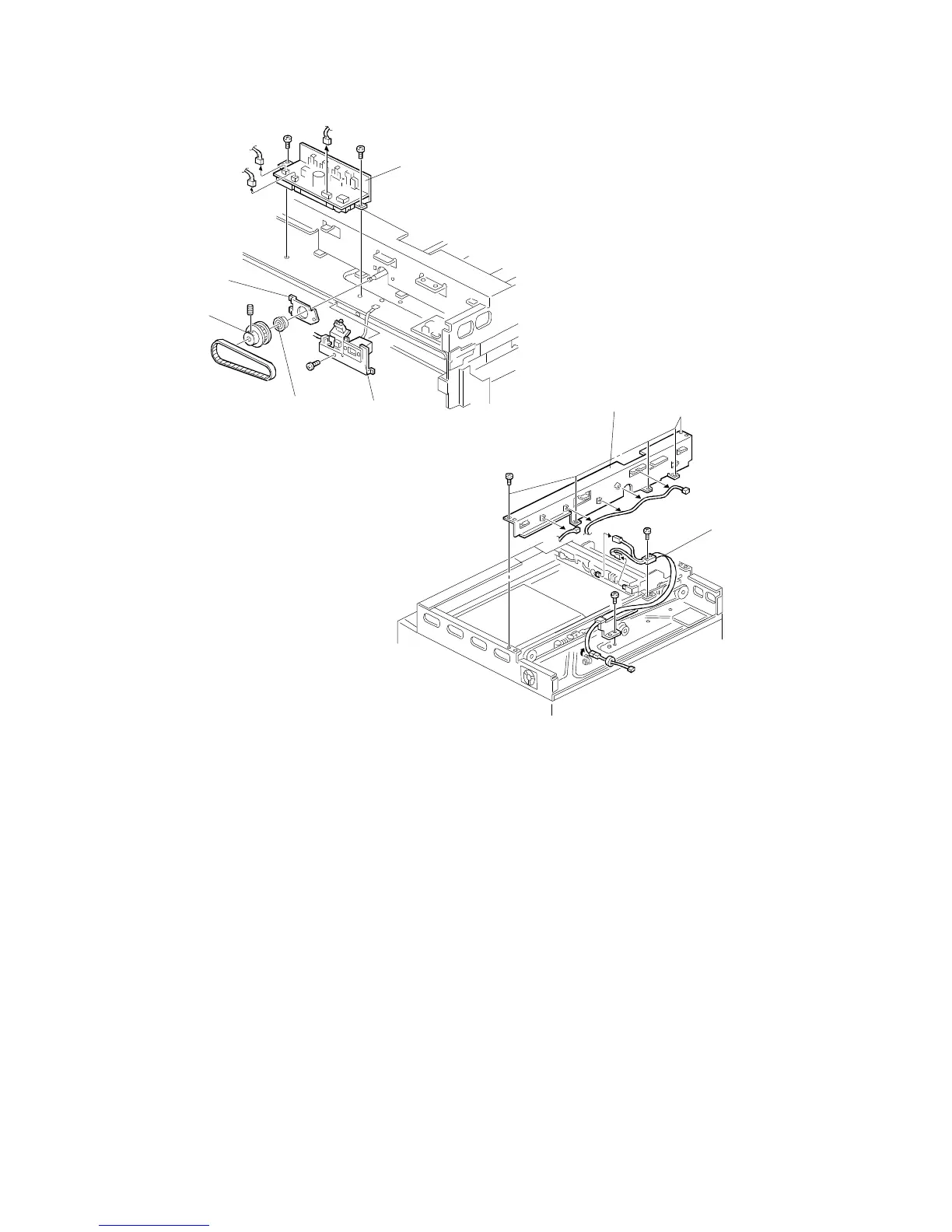

5. Remove the scanner unit lift sensor bracket [A] (1 screw, 1 connector).
6. Remove the lamp regulator PCB [B] (2 screws, 3 connectors).
7. Remove the drive pulley [C].
8. Remove the pulley shaft bearing [D] and bearing retainer [E].
9. Remove the lamp relay cable [F] (2 screws).
10. Remove the rear frame [G] (5 screws).
[B]
[C]
[D]
[A]
[E]
[G]
[F]
SCANNER UNIT
A166/A187/A189 5-20 SM
To Next Page
